Oximeter Pods

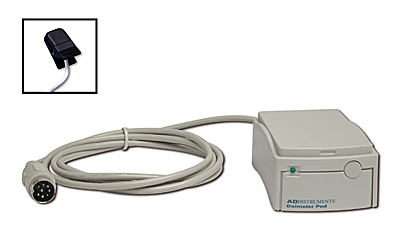

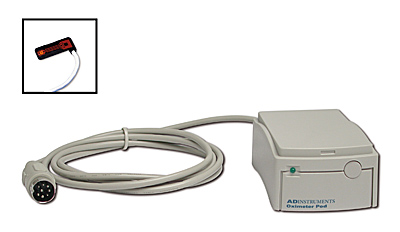

Oximeter Pods are used for the non-invasive measurement of blood oxygen saturation (SpO2) in humans and animals. Oximeter Pods plug directly into a PowerLab Pod Port or a Pod Expander.

Overview

Oximeter Pods for non-invasive measurement of blood oxygen saturation (SpO2) are available in two types, one for recording from humans, while the other for recording from animals. Oximeter Pods plug directly into a PowerLab Pod Port or a Pod Expander. Human SpO2  can be measured via a SpO2 Finger Clip or SpO2 Ear Clip with the corresponding compatible Oximeter Pod. Direct saturation readings in the range of 70 to 100% can be made without the need to perform any other scaling. ADInstruments Oximeter Pods are research devices that are not intended for consumer use in the home. Animal can be measured via an SpO2 Animal Clip,  SpO2 Base Sensor or SpO2 Wrap Sensor with the corresponding compatible Oximeter Pod.

Product Configurations

Animal Oximeter Pod (Wrap Sensor)

Product Code
ML325/AW

Configured specifically for measuring pulse oximetry from the animal tail.

$2,990.00
Ships from overseas Estimated delivery 2 months

Animal Oximeter Pod (Base Sensor)

Product Code
ML325/BS

Suitable for measuring pulse oximetry from an animal underside, base of the tail or other well-vascularized surfaces.

$2,990.00
Ships from overseas Estimated delivery 1 month

Animal Oximeter Pod (Animal Clip)

Product Code
ML325/AC

Suitable for measuring pulse oximetry from an animal paw or tongue.

$2,990.00
Ships from United States Estimated delivery 2-5 business days

Oximeter Pod (Finger Clip)

Product Code
ML320/F
ce

A research finger-clip device used for the non-invasive measurement of blood oxygen saturation in humans.

$2,990.00
Ships from overseas Estimated delivery 2 months

Oximeter Pod (Ear Clip)

Product Code
ML320/E
ce

A research ear-clip device used for the non-invasive measurement of blood oxygen saturation in humans.

$3,160.00
Ships from United States Estimated delivery 2-5 business days

Related

Key Features

  • Semiconductor light emitting diodes in the transducer.
  • Pre-calibrated to read in % SpO2. The scale is fixed at 100% SpO2.
  • An alarm will sound if the value of the SpO2 drops below 70% or the pulse cannot be detected.
  • Animal Oximeter Pod (ML325) is not suitable for mice (rats and larger).

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Technical

Oximeter Pod Data Card

Animal Oximeter Pod Data Card

Oximeter Pods

Operating Principle: Non-invasive blood oxygen saturation (SpO2) determination using red and infrared light passed through pulsating blood in vascular tissue.

  • Saturation range: 70 − 100%
  • Accuracy (70 − 100% saturation): ±2% of full scale using Finger Clip sensor and ±4% of full scale using Ear Clip sensor
  • Measurement wavelength: Red (660 nm) Infrared (910 nm)
  • Measurement rate: 1 reading per second
  • Output signal: 1.75 V for 98 %
  • Resolution: 1 % steps
  • Operating conditions: 0 – 35°C, 0 – 90 % humidity (non condensing)
  • SpO2 acquisition time: ~10 second

All specifications were tested at the time of printing and are subject to change.



Animal Oximeter Pods

Operating Principle: Non-invasive blood oxygen saturation (SpO2) determination using red and infrared light passed through pulsating blood in vascular tissue.

  • Saturation range: 70 − 100%
  • Measurement wavelength: Red (660 nm) Infrared (910 nm)
  • Measurement rate: 1 reading per second (SpO2 mode), 75 samples per second (pulse mode)
  • Output signal: 1.75 V for 98 %
  • Resolution: 1 % steps
  • Operating conditions: 0 – 35°C, 0 – 90 % humidity (non condensing)
  • SpO2 acquisition time: ~5 second
  • Heart rate range: 18 – 450 BPM

All specifications were tested at the time of printing and are subject to change.

Product Codes

ML325/AW
Animal Oximeter Pod (Wrap Sensor)
ML325/BS
Animal Oximeter Pod (Base Sensor)
ML325/AC
Animal Oximeter Pod (Animal Clip)
ML320/F
Oximeter Pod (Finger Clip)
ML320/E
Oximeter Pod (Ear Clip)

Compatibility

ML325/AW

Operating System Recommended Hardware Alternate Hardware
LabChart Lightning Windows / Mac Traditional PowerLab cross
LabChart 8 Windows / Mac Traditional PowerLab cross

ML325/BS

Operating System Recommended Hardware Alternate Hardware
LabChart Lightning Windows / Mac Traditional PowerLab cross
LabChart 8 Windows / Mac Traditional PowerLab cross

ML325/AC

Operating System Recommended Hardware Alternate Hardware
LabChart Lightning Windows / Mac Traditional PowerLab cross
LabChart 8 Windows / Mac Traditional PowerLab cross

ML320/F

Operating System Recommended Hardware Alternate Hardware
LabChart Lightning Windows / Mac Traditional PowerLab cross
LabChart 8 Windows / Mac Traditional PowerLab cross

ML320/E

Operating System Recommended Hardware Alternate Hardware
LabChart Lightning Windows / Mac Traditional PowerLab cross
LabChart 8 Windows / Mac Traditional PowerLab cross
×
