All tBase analog outputs are low pass filtered at 1kHz. Once paired with a telemeter on the same transmission frequency, the tBase will automatically detect the model of the telemeter it is communicating with. tBase analog outputs are then configured to the following signal outputs:
Table 1: tBase analog outputs

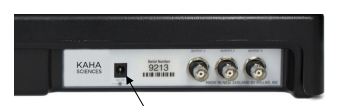

Figure 1: tBase rear view

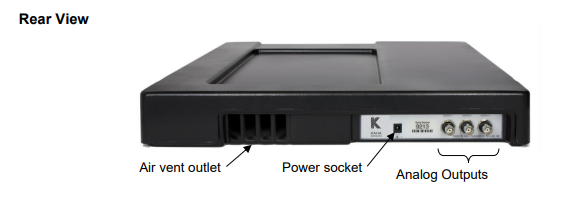

Figure 2: tBase analog outputs
