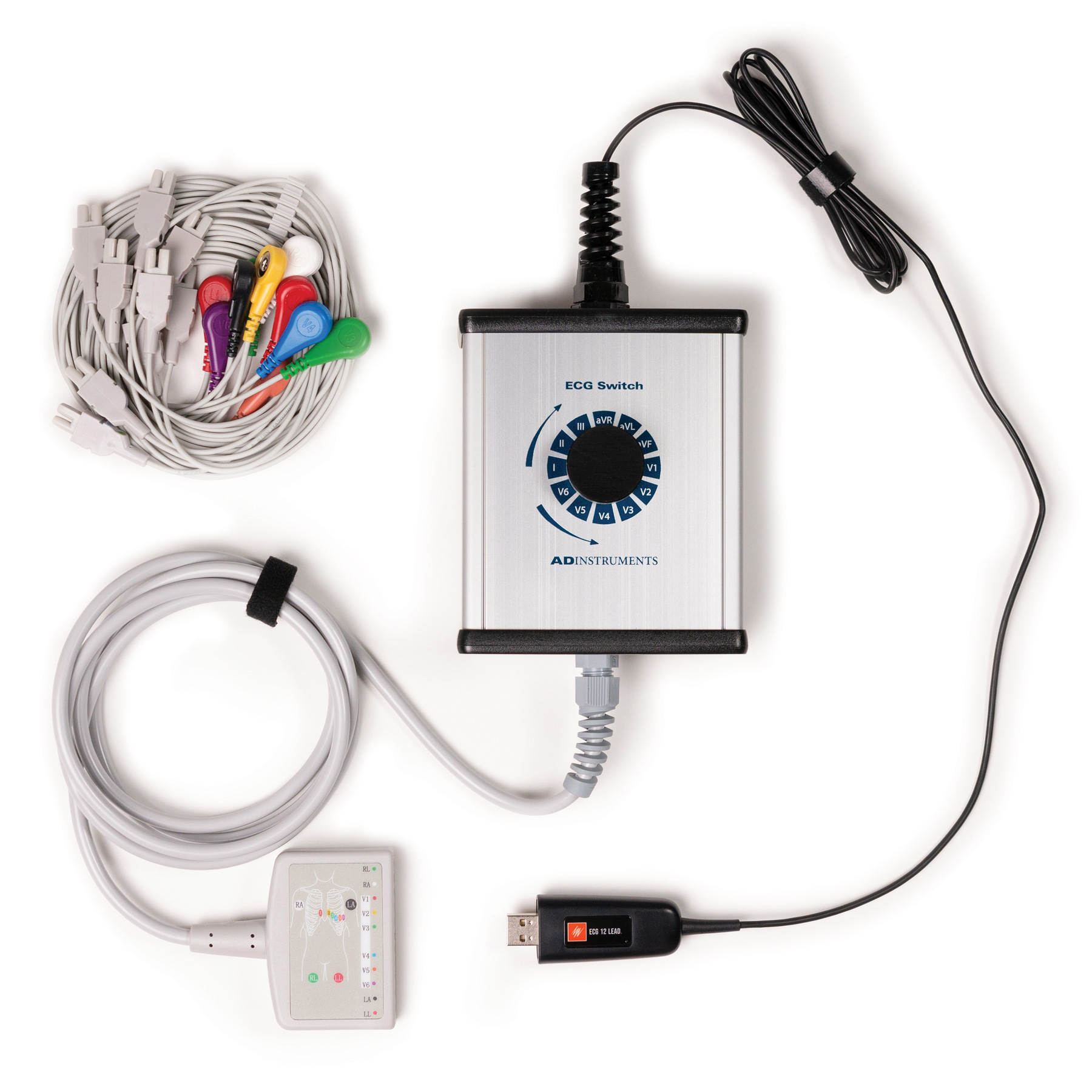

ECG 12 Lead Switch Box

The ECG 12 Lead Switch Box allows for the mechanical selection of standard lead configurations using 10 standard lead wires. It supports a direct selection of Lead I, II, III, aVF, aVL, aVR, and V1 to V6 configurations.

The output from the ECG Switch Box is displayed in the first channel, and a second channel displays Lead II only.

The ECG 12 Lead Switch Box can be used in Lt, Lt LabStation, and LabChart. It plugs into the PowerLab T1 or straight into a Windows or macOS® laptop or desktop computer via USB connection.

When used with LabChart, the ECG 12 Lead Switch Boxes will automatically create new channels in your LabChart file. A maximum of two PowerLab ECG 12 Lead Switch Boxes can connect to LabChart at a time.

Included with the ECG 12 Lead Switch Box:

• Shielded Lead Wires (10 snap-on)

Accessories purchased separately:

• Disposable ECG Electrodes (1000)
• Electrode Cream (12)
• Electrode Paste (6 pk)
• Abrasive Gel (3 pk)
• Alcohol Swabs (1000 pk)
