Electronic Knee or Elbow Goniometer

Goniometer Sensor

Electronic Knee or Elbow Goniometer

Product Code SEN2151
Our goniometer sensor is a bipolar joint angle sensor for single-degree-of-freedom joints, eg, the knee or elbow, used for a range of medical, anatomical & physiological applications.
$1,250.00
Ships from supplier Estimated delivery 2 months
Book a demo

Overview

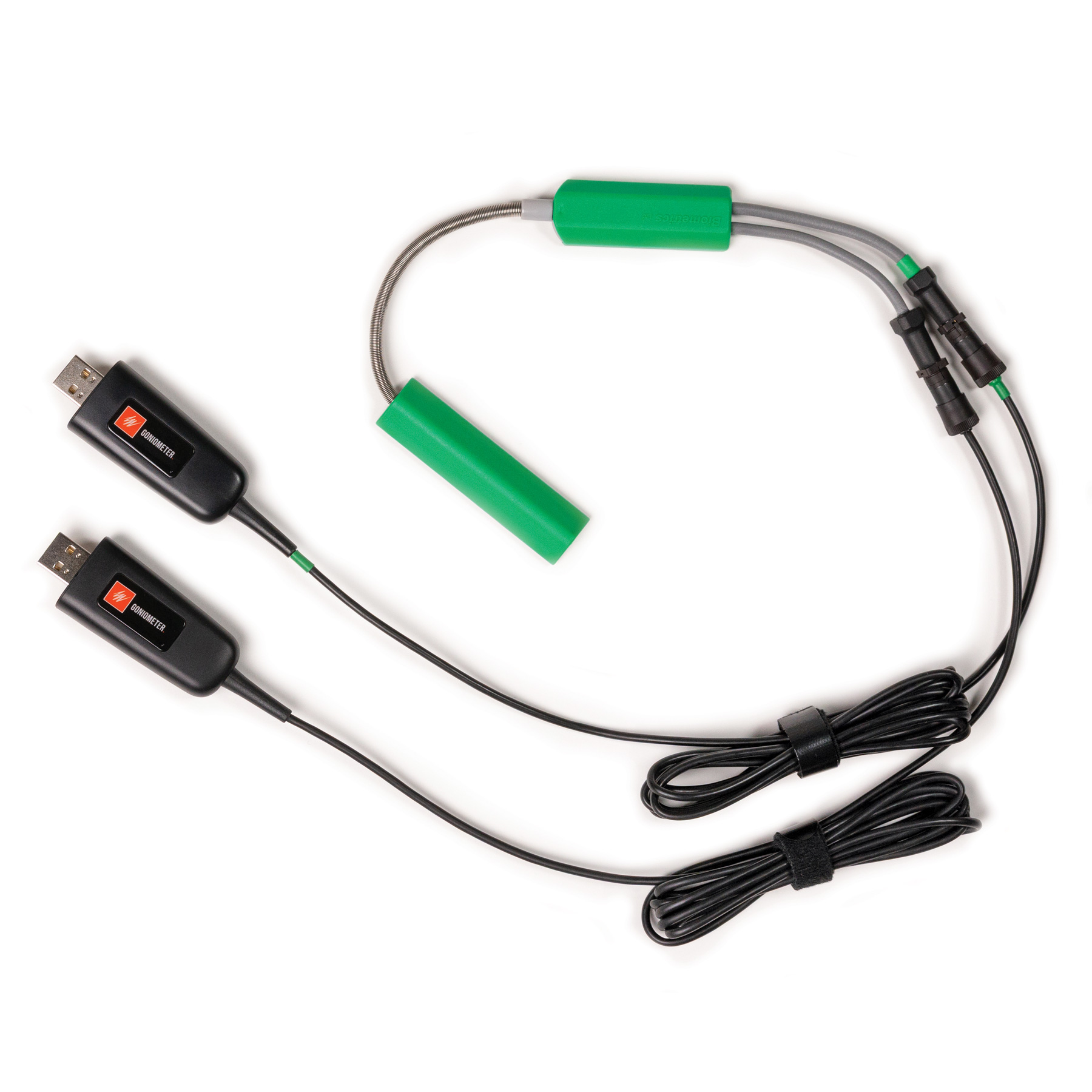

A digital goniometer is a bipolar joint angle sensor for single-degree-of-freedom joints such as the knee or elbow, which is suitable for use in humans or in large animals. The angle is determined by the amount of light passing through a pair of optic fibers running along the cantilever, and a light sensor is contained in one of the enclosures. A mounting kit is supplied, which offers convenient, easy-to-use, one-size-fits-many, Velcro straps and double-sided adhesive tape.

The goniometer sensor can be used in Lt, Lt LabStation, and LabChart. It plugs into the PowerLab T1 or straight into a Windows or macOS® laptop or desktop computer via USB connection.

When used with LabChart, the Goniometer Sensor will automatically create a new channel in your LabChart file. A maximum of two PowerLab Goniometer Sensors can connect to LabChart at a time.

The goniometer sensor can be used with a tendon hammer Sensor for tendon jerk experiments.

Support

Support Assistant

Our Support Assistant can answer common questions and provide solutions.

Go to Support Assistant

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Technical

Software Compatibility

LabChart 9checkmark
Ltcheckmark
Lt LabStationcheckmark

Product Code

SEN2151
PowerLab Sensors Goniometer (2 axis, hip/knee with adapter)
