Overview

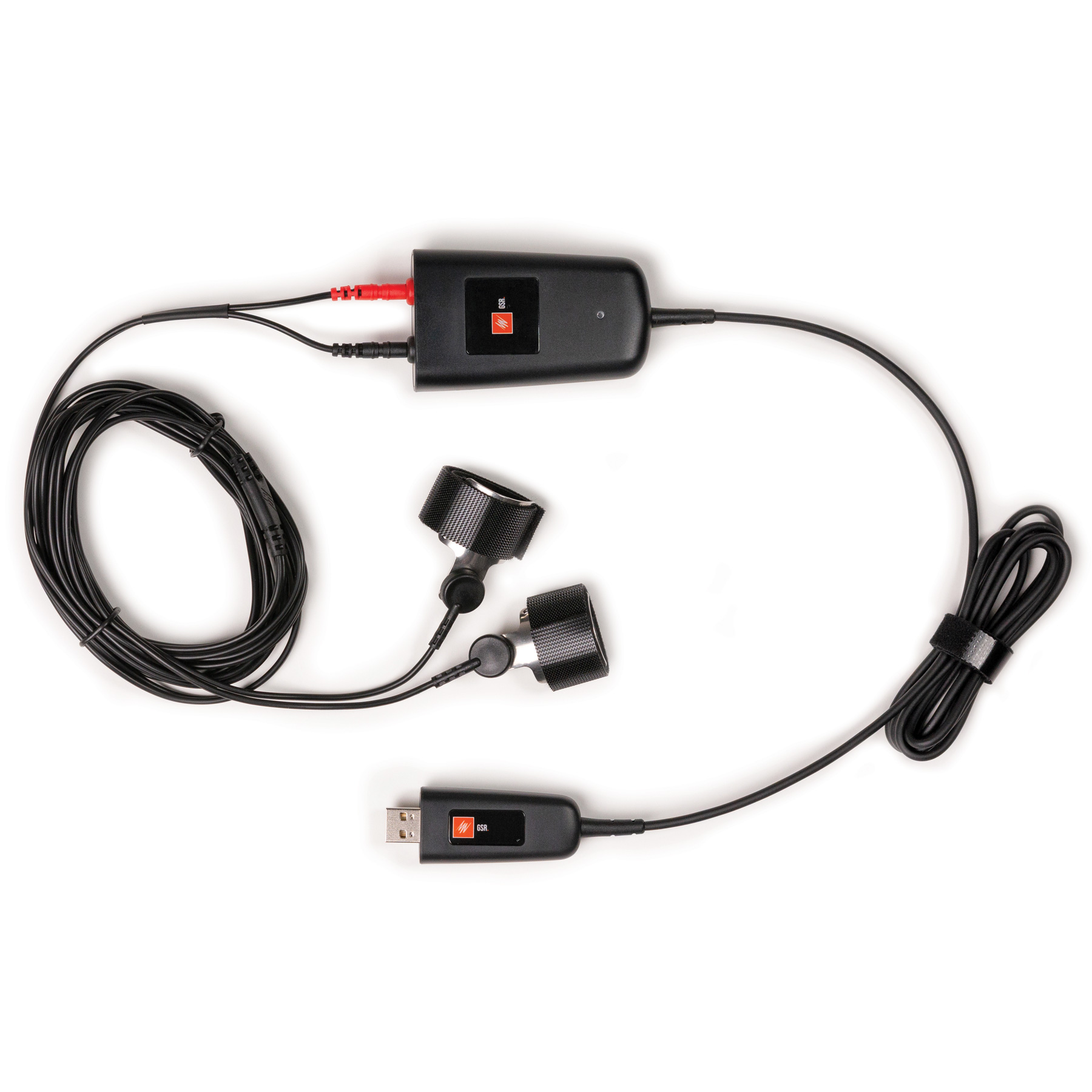

The PowerLab Sensors Galvanic Skin Response (GSR) Sensor is a galvanically isolated, skin conductance response amplifier with low constant-voltage AC excitation and software-controlled zeroing. The low level AC excitation reduces electrode polarization artifacts found in DC systems. It is supplied with a pair of MLT119F finger electrodes with Velcro™ attachment straps.
The GSR Sensor can be used in Lt and Lt LabStation. It plugs into the PowerLab T1 or straight into a Windows or macOS® laptop or desktop computer via USB connection.
Included with the GSR Sensor:
- MLT119F GSR Finger Electrodes (Snap Lead)
- Velcro® straps suitable for adults
Accessories purchased separately:
Key Features
- 50 Hz oscillator which supplies a near square wave, low-impedance, low-voltage (22 mVrms) signal to an electrode on one finger of the subject.
- Galvanic isolation for subject safety.
- Software-controlled zeroing.
- IEC 60601 certified for use on humans.
- Supplied with GSR Finger Electrodes and adult Velcro® straps.
Support
Support Assistant
Our Support Assistant can answer common questions and provide solutions.
Go to Support AssistantTraining and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
See Training & WorkshopsDetails and Tech Specs
Technical
Input
- Connection type: 2 × 4 mm (0.16") shrouded banana plugs to custom cable. Two dry, bright-plated, bipolar electrodes with Velcro™ attachment strap suitable for adult fingers.
- Excitation: Constant-voltage AC excitation (22 mVrms @50 Hz)
- Current density: ≤0.5 μA cm–2
- Isolation rating: 4000 V ACrms for 1 minute
- Amplification ranges: 0 to 50 μS
- Frequency response: –3 dB at 1 Hz
- Accuracy: ±1 %
- Input leakage current: <4 μArms at 240V, 50 Hz <4 μArms at 120V, 60 Hz
- Zeroing and offset: Software-controlled
Physical Configuration
- Weight: (including electrode lead): 200 g
- Operating temperature range: 5 to 35 °C, 0 to 90% humidity (noncondensing)
ADInstruments reserves the right to alter these specifications at any time.
