GSR Electrodes
MLA0118, MLT118F, MLT117f
Configurations

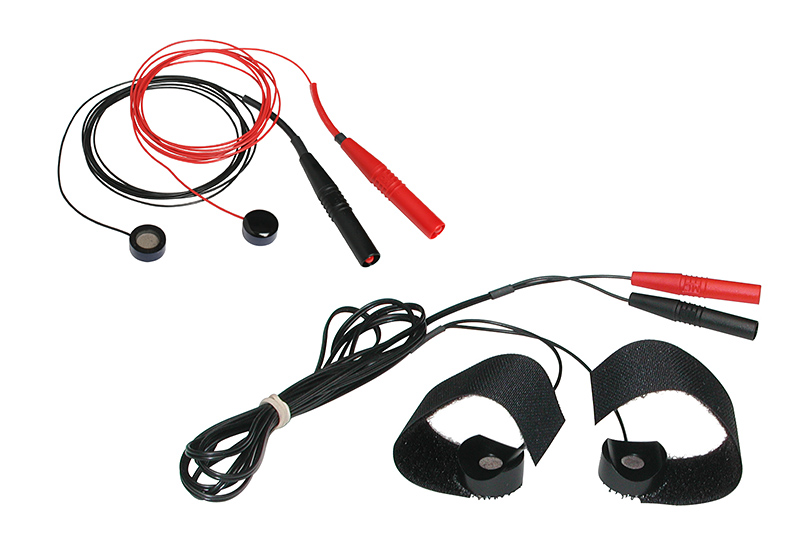

GSR Electrodes (Ag-AgCl)
MLA0118
A pair of 8 mm diameter electrodes, made from a fine grain, homogeneous mixture of silver-silver chloride (Ag-AgCl) compressed and sintered for strength and stability. Electrodes are 1 mm thick, encapsulated in durable housings, and supplied with an 1.5 m PVC insulated lead wires. These electrodes may be placed and attached via suitable tape (not supplied) on a variety of locations on the human body as deemed fit by the experimental protocol. The Skin Resistance/Conductance Electrode Paste is reommended for use with these electrodes to improve skin contact and GSR recording quality.
GSR Finger Electrodes (MR Safe)
MLT117f
A pair of silver/silver chloride (Ag-AgCl), contoured finger electrodes that are Magnetic resonance (MR) safe.
Included with the electrodes:
- Velcro straps
- 5 m cable
- 2 x 4 mm shrouded connectors
The Skin Resistance/Conductance Electrode Paste, (120 ml, 5pk) is recommend for use with these electrodes to improve skin contact and GSR recording quality.
GSR Finger Electrodes (Snap Lead)
MLT118F
A pair of bipolar finger electrodes that are made from brightly polished stainless steel finger plates and are fitted with Velcro tape. The finger electrodes connect to the included adapter cable via a snap fitting. The cable is approx 2m long. Use of conductive gel with these electrodes is not recommended. These electrodes are supplied standard with the GSR Amp.
GSR Electrodes
PRICE ON REQUEST
Electrodes designed to be used with the GSR Amp for measuring human galvanic skin response (GSR).
Overview
Configurations
GSR Electrodes (Ag-AgCl) copy permalink
https://www.adinstruments.com/products/gsr-electrodes#product-MLA0118
MLA0118
A pair of 8 mm diameter electrodes, made from a fine grain, homogeneous mixture of silver-silver chloride (Ag-AgCl) compressed and sintered for strength and stability. Electrodes are 1 mm thick, encapsulated in durable housings, and supplied with an 1.5 m PVC insulated lead wires. These electrodes may be placed and attached via suitable tape (not supplied) on a variety of locations on the human body as deemed fit by the experimental protocol. The Skin Resistance/Conductance Electrode Paste is reommended for use with these electrodes to improve skin contact and GSR recording quality.
GSR Finger Electrodes (MR Safe) copy permalink
https://www.adinstruments.com/products/gsr-electrodes#product-MLT117f
MLT117f
A pair of silver/silver chloride (Ag-AgCl), contoured finger electrodes that are Magnetic resonance (MR) safe.
Included with the electrodes:
- Velcro straps
- 5 m cable
- 2 x 4 mm shrouded connectors
The Skin Resistance/Conductance Electrode Paste, (120 ml, 5pk) is recommend for use with these electrodes to improve skin contact and GSR recording quality.
GSR Finger Electrodes (Snap Lead) copy permalink
https://www.adinstruments.com/products/gsr-electrodes#product-MLT118F
MLT118F
A pair of bipolar finger electrodes that are made from brightly polished stainless steel finger plates and are fitted with Velcro tape. The finger electrodes connect to the included adapter cable via a snap fitting. The cable is approx 2m long. Use of conductive gel with these electrodes is not recommended. These electrodes are supplied standard with the GSR Amp.
GSR Electrodes (Ag-AgCl)
MLA0118
GSR Finger Electrodes (MR Safe)
MLT117f
GSR Finger Electrodes (Snap Lead)
MLT118F
