Response Meter (3m)
Provides the subject with the ability to quantify their response to a range of different stimuli in psychology related experiments.
Overview

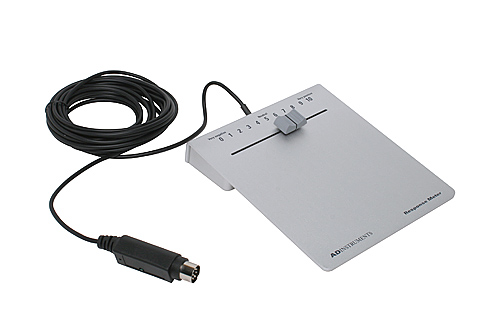

The Response Meter has a slide control with a 10-point Likert scale that provides the subject with the ability to quantify their response to a range of different stimuli. The Response Meter connects directly to a Pod input (8-pin DIN) of a PowerLab; several Response Meters can be connected, which allows multiple subjects to respond simultaneously to the same stimuli.
Related
Research Applications
Support
Support Assistant
Our Support Assistant can answer common questions and provide solutions.
Go to Support AssistantTraining and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
See Training & WorkshopsDetails and Tech Specs
Technical
- Electrical output range: 0-5 V (scaled to 0-10 by software)
- Scale: 0 10 Likert
- Neutral indicator: 5
- Default software resolution: 1 % (user-configurable)
- Length of travel of slide control: ~100 m
- Inclination of working surface: 10ο
- Dimensions: 140 x 160 x 30mm (w x h x d) approximate
- Cable length: 3 m
- Weight (including cable): 550 g
- Electrical interface: Smart DIN
- For use with PowerLab Pod input or Pod Expander only
