Response Pad to PowerLab Cable (2m)
The Response Pad to PowerLab Cable (2m) connects to the Accessory Connector on the back of the any of the RB-x30 Series (discontinued) response pads directly to any PowerLab unit with a Digital Input.
Overview

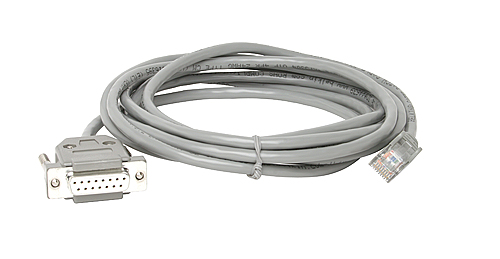

The Response Pad to PowerLab Cable (2m) connects to the Accessory Connector on the back of the any of the RB-x30 Series (discontinued) response pads directly to any PowerLab data acquisition unit with a Digital Input. The cable has a standard RJ45 jack with eight pins (one ground, one positive voltage and six input/output lines) on one end that connects to the accessory connector of any of the response pad. The six input/output lines will correspond to five/six different buttons on the response pad depending on the model of the response. The length of the cable is ~ 2 m.
