Equivital Accessories

EQ-ACC-034, EQ-ACC-023, EQ-ACC-048, EQ-ACC-029, EQ-ACC-BAT-2, EQ-ACC-MD-1

Configurations

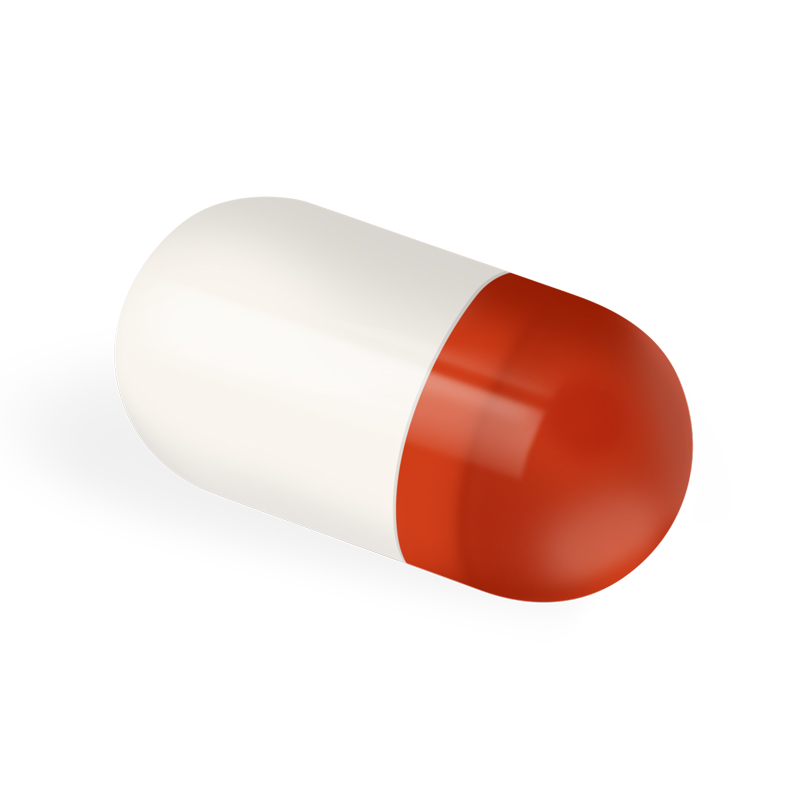

Equivital Core Temperature Capsule

EQ-ACC-023

The Equivital Core Temperature is a disposable capsule that, once activated by the Equivital Core Temperature Pill/Dermal Patch Activator and swallowed will wirelessly transmit a temperature measurement to a nearby Equivital SEM once every 15 seconds. It measures 8.5mm in diameter and 23mm long, weighs 1.6grams and the non-replaceable battery lasts for 12-48hours from the time of activation. Accuracy is +-0.1C for temperatures between 32 and 42C. Transmission range is <1m.


Equivital Core Temperature Pill/Dermal Patch Activator

EQ-ACC-029

The Equivital Core Temperature Pill/Dermal Patch Activator is required to activate the Equivital Temperature Dermal Patch and Core Temperature Capsules. The unit measures 96x47x27.5mm, weighs 65grams and is powered by batteries 2 AAA batteries which are designed to last >2years when used less than 5 times a day.


Equivital Dermal Temperature Patch

EQ-ACC-048

The Equivital Dermal Temperature Patch is a disposable patch that, once activated by the Equivital Core Temperature Pill/Dermal Patch Activator, will wirelessly transmit a temperature signal to a nearby Equivital SEM. It contains adhesive on one side for easy attachment to the skin. It is 57mm in diameter, 5.3mm thick, weighs 7.5g and the battery lasts for up to 240hours of active time. The patch has a 1 year shelf life. Accuracy is +-0.1C between 32 and 42C. Transmission range is <2m.


Equivital M-Dock

EQ-ACC-MD-1

The Equivital M-Dock is a desktop dock that allows for charging/configuration of up to 6 Equivital SEMs. It includes 3 connection ports: one for a 12V DC Power Supply (included) a Type-B USB input (for connection to a PC) and a Type-A USB socket for connecting to addition M-Docks. The dock measures 370x238x50mm.


Equivital SEM External Battery Pack

EQ-ACC-BAT-2

The Equivital SEM External Battery Pack increases the battery life of the SEM to 24-43 hours (depending on configuration used). Note that since the External Battery connects to the SEM expansion port it cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital GSR Ancillary). It is just large enough to accomodate the 3 AAA size batteries it requires to operate and fits inside a dedicated pouch in the Equivital Sensor Belt.


Galvanic Skin Response Sensor

EQ-ACC-034

The Galvanic Skin Response Sensor connects to the expansion port on the Equivital SEM to enable recording of Galvanic Skin Response (GSR) signals. It consists of a small box that can fit inside the Equivital Sensor Belt or be worn on the wrist as well as short leads terminating in standard 'Snap Lead' connectors suitable for use with the MLA1010 disposable electrodes. Note that since the Galvanic Skin Response Sensor connects to the SEM's only expansion port this cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital SEM External Battery Pack)


×

Equivital Accessories

PRICE ON REQUEST

Range of wireless and wired accessories for Equivital solutions.

Book a Demo

Overview

A range of wireless and wired accessories designed to work with Equivital (EN) wireless monitoring systems.

Configurations


Equivital Core Temperature Capsule

EQ-ACC-023

The Equivital Core Temperature is a disposable capsule that, once activated by the Equivital Core Temperature Pill/Dermal Patch Activator and swallowed will wirelessly transmit a temperature measurement to a nearby Equivital SEM once every 15 seconds. It measures 8.5mm in diameter and 23mm long, weighs 1.6grams and the non-replaceable battery lasts for 12-48hours from the time of activation. Accuracy is +-0.1C for temperatures between 32 and 42C. Transmission range is <1m.

Equivital Core Temperature Pill/Dermal Patch Activator

EQ-ACC-029

The Equivital Core Temperature Pill/Dermal Patch Activator is required to activate the Equivital Temperature Dermal Patch and Core Temperature Capsules. The unit measures 96x47x27.5mm, weighs 65grams and is powered by batteries 2 AAA batteries which are designed to last >2years when used less than 5 times a day.

Equivital Dermal Temperature Patch

EQ-ACC-048

The Equivital Dermal Temperature Patch is a disposable patch that, once activated by the Equivital Core Temperature Pill/Dermal Patch Activator, will wirelessly transmit a temperature signal to a nearby Equivital SEM. It contains adhesive on one side for easy attachment to the skin. It is 57mm in diameter, 5.3mm thick, weighs 7.5g and the battery lasts for up to 240hours of active time. The patch has a 1 year shelf life. Accuracy is +-0.1C between 32 and 42C. Transmission range is <2m.

Equivital M-Dock

EQ-ACC-MD-1

The Equivital M-Dock is a desktop dock that allows for charging/configuration of up to 6 Equivital SEMs. It includes 3 connection ports: one for a 12V DC Power Supply (included) a Type-B USB input (for connection to a PC) and a Type-A USB socket for connecting to addition M-Docks. The dock measures 370x238x50mm.

Equivital SEM External Battery Pack

EQ-ACC-BAT-2

The Equivital SEM External Battery Pack increases the battery life of the SEM to 24-43 hours (depending on configuration used). Note that since the External Battery connects to the SEM expansion port it cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital GSR Ancillary). It is just large enough to accomodate the 3 AAA size batteries it requires to operate and fits inside a dedicated pouch in the Equivital Sensor Belt.

Galvanic Skin Response Sensor

EQ-ACC-034

The Galvanic Skin Response Sensor connects to the expansion port on the Equivital SEM to enable recording of Galvanic Skin Response (GSR) signals. It consists of a small box that can fit inside the Equivital Sensor Belt or be worn on the wrist as well as short leads terminating in standard 'Snap Lead' connectors suitable for use with the MLA1010 disposable electrodes. Note that since the Galvanic Skin Response Sensor connects to the SEM's only expansion port this cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital SEM External Battery Pack)

×
checkmark Item successfully added to your quote request.
Equivital Core Temperature Capsule

Equivital Core Temperature Capsule

EQ-ACC-023

×
checkmark Item successfully added to your quote request.
Equivital Core Temperature Pill/Dermal Patch Activator

Equivital Core Temperature Pill/Dermal Patch Activator

EQ-ACC-029

×
checkmark Item successfully added to your quote request.
Equivital Dermal Temperature Patch

Equivital Dermal Temperature Patch

EQ-ACC-048

×
checkmark Item successfully added to your quote request.
Equivital M-Dock

Equivital M-Dock

EQ-ACC-MD-1

×
checkmark Item successfully added to your quote request.
Equivital SEM External Battery Pack

Equivital SEM External Battery Pack

EQ-ACC-BAT-2

×
checkmark Item successfully added to your quote request.
Galvanic Skin Response Sensor

Galvanic Skin Response Sensor

EQ-ACC-034

Related

Research Applications

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Product Codes


EQ-ACC-023
Equivital Core Temperature Capsule
EQ-ACC-029
Equivital Core Temperature Pill/Dermal Patch Activator
EQ-ACC-048
Equivital Dermal Temperature Patch
EQ-ACC-MD-1
Equivital M-Dock
EQ-ACC-BAT-2
Equivital SEM External Battery Pack
EQ-ACC-034
Galvanic Skin Response Sensor
