The menu icons on my Labchart screen appear very small. How do I fix these scaling issues?

Scaling issues may affect LabChart 8 on certain 4K monitors, causing the menu icons to appear unusually small (See picture).

In Windows, it's possible to make application-specific display settings changes to fix these issues.

Step 1: Adjust scaling to 100% via display settings.

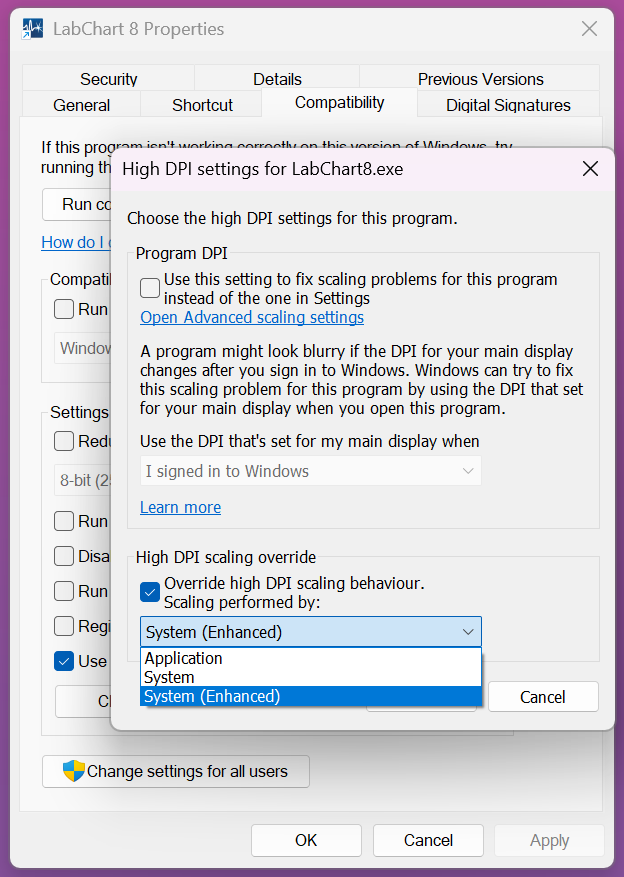

Step 2: Right click on the LabChart 8 icon and go to properties and then, click "Change High DPI Settings" under Compatibility.

Step 3: Check the "High DPI scaling override" and select "System (Enhanced)" in the drop-down list.

Step 4: Click OK, and then Apply on the dialog boxes.

Step 5: Start LabChart 8

For further technical assistance with this or any other issue, please contact ADInstruments Technical Support by clicking HERE.
