AC/DC Differential Amplifier
Suitable for EEG, ECG and extracellular recordings, it is ideal for teaching and is included in the Neuroscience Kit.
Overview
Used as a single-ended amplifier. It is designed for low-noise recording from excitable tissue and is suitable for EEG, ECG and extracellular recordings. It is ideal for teaching and is included in the Neuroscience Kit.

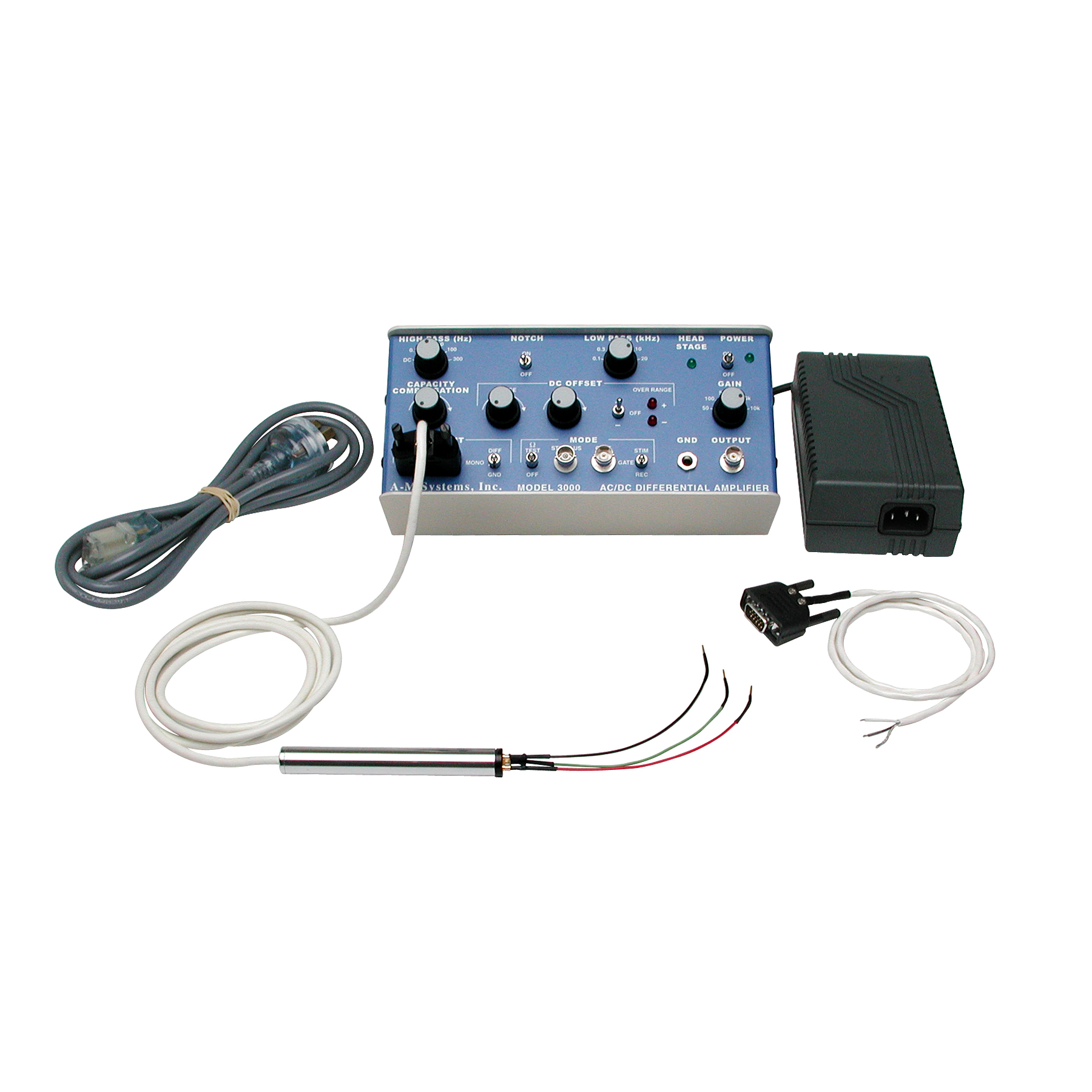

Included with the amplifier:
- A headstage for use with high impedance electrodes. The headstage supports record, stimulate and impedance modes.
Note: The AC/DC Differential Amplifier (AM3000H) with a headstage designed for use with glass pipette microelectrodes is also available. You will need to purchase Glass Microelectrode Holders separately.
Key Features
- The input can be amplified from 50 to 10,000 times in both DC and AC modes.
- A high resolution DC Offset adjustment is available up to ±250 mV, using Fine and Coarse adjustment controls.
- High Pass, Low Pass, and Notch Filters offer wide frequency selectivity.
Related
Products
Support
Support Assistant
Our Support Assistant can answer common questions and provide solutions.
Go to Support AssistantTraining and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
See Training & WorkshopsDetails and Tech Specs
Technical
| Parameter | Value |
|---|---|
| Gain | 50 - 10,000x (factory customizable upon request) |
| Noise | 1.8µV, p-p (10 Hz - 10 kHz); 0.1fA/Hz at 1 kHz |
| Input impedance | 1015 Ohms || 1 pF |
| Initial bias current | ±1.0 fA, typical |
| Maximum differential signal | 200 mV with ±250 mV offset |
| Capacity compensation | -4 - 50 pF |
