Rodent NIBP CODA® Monitor Sets

INL326-M, INL326-R, INL326-RXL

Configurations


Rodent NIBP CODA® Monitor Set for Mice (8-75g)

INL326-M

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in mice sized between 8 to 75 g in weight. Includes 2 x Occlusion Cuffs (XSml + Sml) and 1 x VPR Cuff Sensor (Sml).


Rodent NIBP CODA® Monitor Set for Rats (75-500g)

INL326-R

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in rats sized between 75 and 500g in weight. Includes 2 x Occlusion Cuffs (Med + Lrg) and 2 x VPR Cuff Sensors (Med + Lrg).


Rodent NIBP CODA® Monitor Set for Extra Large Rats (>500g)

INL326-RXL

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in rats sized over 500g in weight. Includes 2 x Occlusion Cuffs (Lrg + XLrg) and 2 x VPR Cuff Sensors (Lrg + XLrg).


×

Rodent NIBP CODA® Monitor Sets

PRICE ON REQUEST

The ADInstruments Rodent NIBP CODA® Monitor Sets are designed to non-invasively record volume pressure recordings (VPR) in rodents as a method to reliably and accurately measure blood pressure in rodents.

Book a Demo

Overview

The ADInstruments Rodent NIBP CODA® Monitor Sets are designed to non-invasively record volume pressure recordings (VPR) in rodents as a method to reliably and accurately measure blood pressure in animals ranging from mice as small as 8 grams, to rats over 950 grams.

This is done via a specially designed differential pressure transducer that measures the blood volume in the tail. This method is not pulse-dependent, requires only normal thermoregulation, and has been validated as providing a high correlation to direct blood pressure and telemetry measurement methods1.

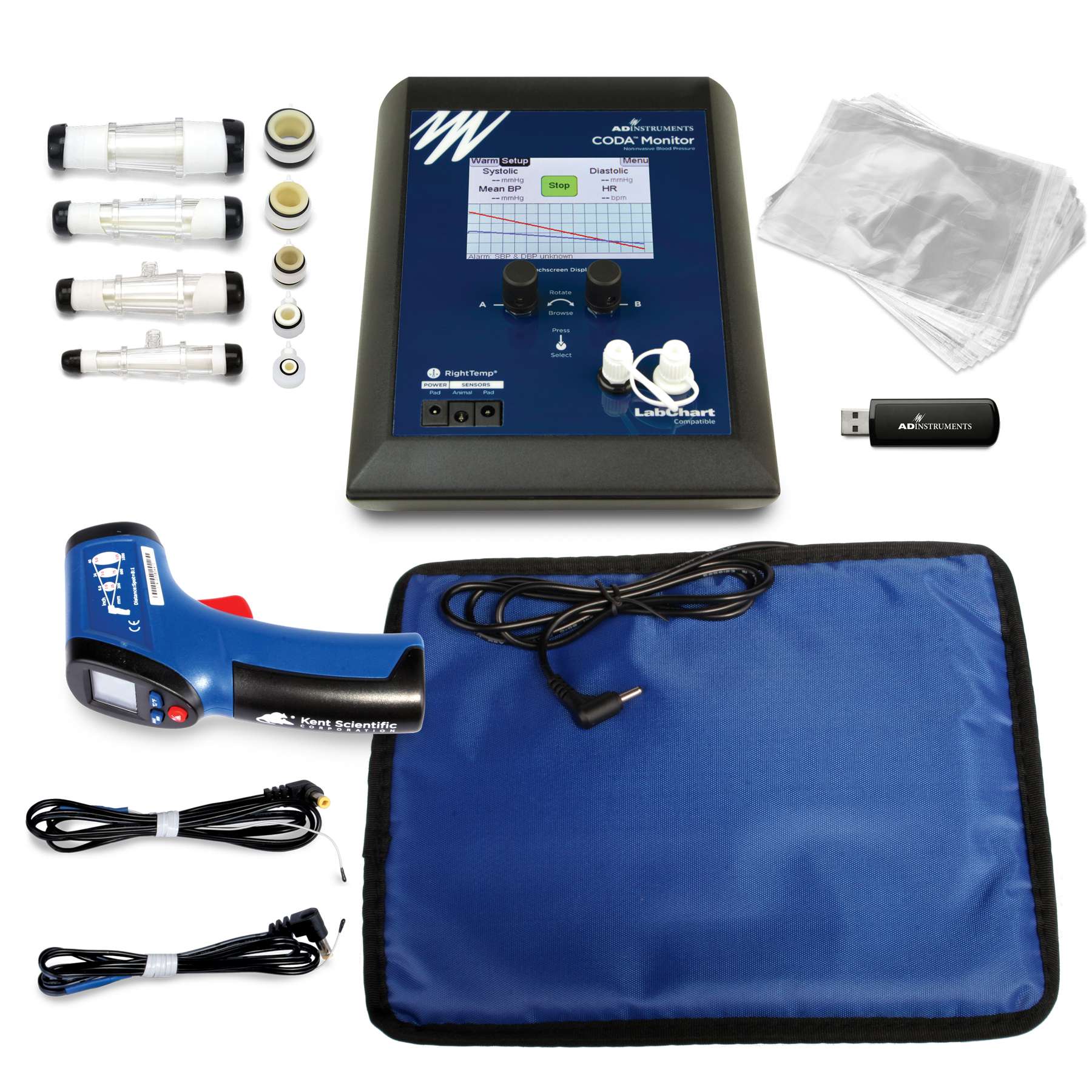

Sets include an ADInstruments CODA® Monitor (OEM version of Kent Scientific’s CODA® Monitor), combined with the CODA® Monitor Device Enabler. The controller allows streaming of measured and calculated NIBP data directly into LabChart for streamlined recording and visualization. Monitors provide systolic, diastolic, and mean blood pressure as well as heart rate from an individual rodent. It also measures animal and pad temperature, tail blood volume and blood flow interactions, occlusion cuff pressure, and VPR signal check as supplementary signals for assessment of measurement quality.

Each System includes:

Required:

  • LabChart 8 Analysis Software for Windows (sold separately)

Accessories (purchased separately):

  • CODA® Mouse Cuff Kit (included in mouse set, but can also be purchased separately)
  • CODA® Rat Cuff Kit (included in rat set, but can also be purchased separately)
  • CODA® Extra Large Rat Cuff Kit (included in extra-large rat set, but can also be purchased separately)
  • CODA® NIBP Mouse Holders
    • Small (1.00” inside diameter; 3.50” Holder length) for < 25 g mice
    • Medium (1.25” inside diameter; 4.25” holder length) for 25-50 g mice
    • Large (1.50” inside diameter; 5.25” holder length) for 50-75 g mice
  • CODA® NIBP Rat Holders
    • Small (2.00” inside diameter; 6.50” holder length) for 75-200 g rats
    • Medium (2.25” inside diameter; 7.00” holder length) for 200-300 g rats
    • Large (3.00” inside diameter; 7.50” holder length) for 300-500 g rats
    • Extra-large (3.50” inside diameter; 8.00” holder length) for > 500 g rats
  • Rodent NIBP CODA® RightTemp Sensors (5pk)

1. Feng M, Whitesall S, Zhang Y, Beibel M, D'Alecy L, DiPetrillo K. Validation of volume-pressure recording tail-cuff blood pressure measurements. Am J Hypertens. 2008 Dec;21(12):1288-91.

Configurations


Rodent NIBP CODA® Monitor Set for Mice (8-75g)

INL326-M

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in mice sized between 8 to 75 g in weight. Includes 2 x Occlusion Cuffs (XSml + Sml) and 1 x VPR Cuff Sensor (Sml).

Rodent NIBP CODA® Monitor Set for Rats (75-500g)

INL326-R

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in rats sized between 75 and 500g in weight. Includes 2 x Occlusion Cuffs (Med + Lrg) and 2 x VPR Cuff Sensors (Med + Lrg).

Rodent NIBP CODA® Monitor Set for Extra Large Rats (>500g)

INL326-RXL

This Rodent NIBP Set is suitable for measurement of non-invasive blood pressure in rats sized over 500g in weight. Includes 2 x Occlusion Cuffs (Lrg + XLrg) and 2 x VPR Cuff Sensors (Lrg + XLrg).

×
checkmark Item successfully added to your quote request.
Rodent NIBP CODA® Monitor Set for Mice (8-75g)

Rodent NIBP CODA® Monitor Set for Mice (8-75g)

INL326-M

×
checkmark Item successfully added to your quote request.
Rodent NIBP CODA® Monitor Set for Rats (75-500g)

Rodent NIBP CODA® Monitor Set for Rats (75-500g)

INL326-R

×
checkmark Item successfully added to your quote request.
Rodent NIBP CODA® Monitor Set for Rats (75-500g)

Rodent NIBP CODA® Monitor Set for Rats (75-500g)

INL326-R

Features

  • Easy to use touch screen display
  • Works with a wide range of cuffs to accurately cater to a variety of rodent tail sizes
  • Direct integration with LabChart software (sold separately)
  • Can allow connections to up to three ADInstruments CODA Monitors (if PC USB ports are available)
  • Provides a record of occlusion waveforms and detection points through automatically added comments.

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Product Codes


INL326-M
Rodent NIBP CODA® Monitor Set for Mice (8-75g)
INL326-R
Rodent NIBP CODA® Monitor Set for Rats (75-500g)
INL326-RXL
Rodent NIBP CODA® Monitor Set for Extra Large Rats (>500g)
