Sometimes you may wish to convert the underlying units of voltage to a more user-friendly unit, such as if you are using the PowerLab to output a signal to an external device. You need to know the relationship between voltage and the units you are working in, e.g., 1 V --> 50°C; 2 V 60°C

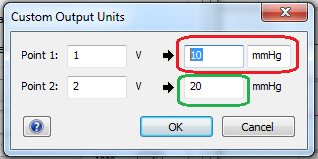

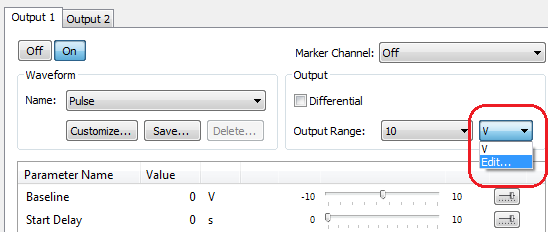

To change the unit, Open the stimulator Dialog and click on the V next to the Output range and choose edit.. You should then put in the appropriate conversion values and overwrite the unit in the top right corner.
For further technical assistance with this or any other issue, please contact ADInstruments Technical Support by clicking HERE
