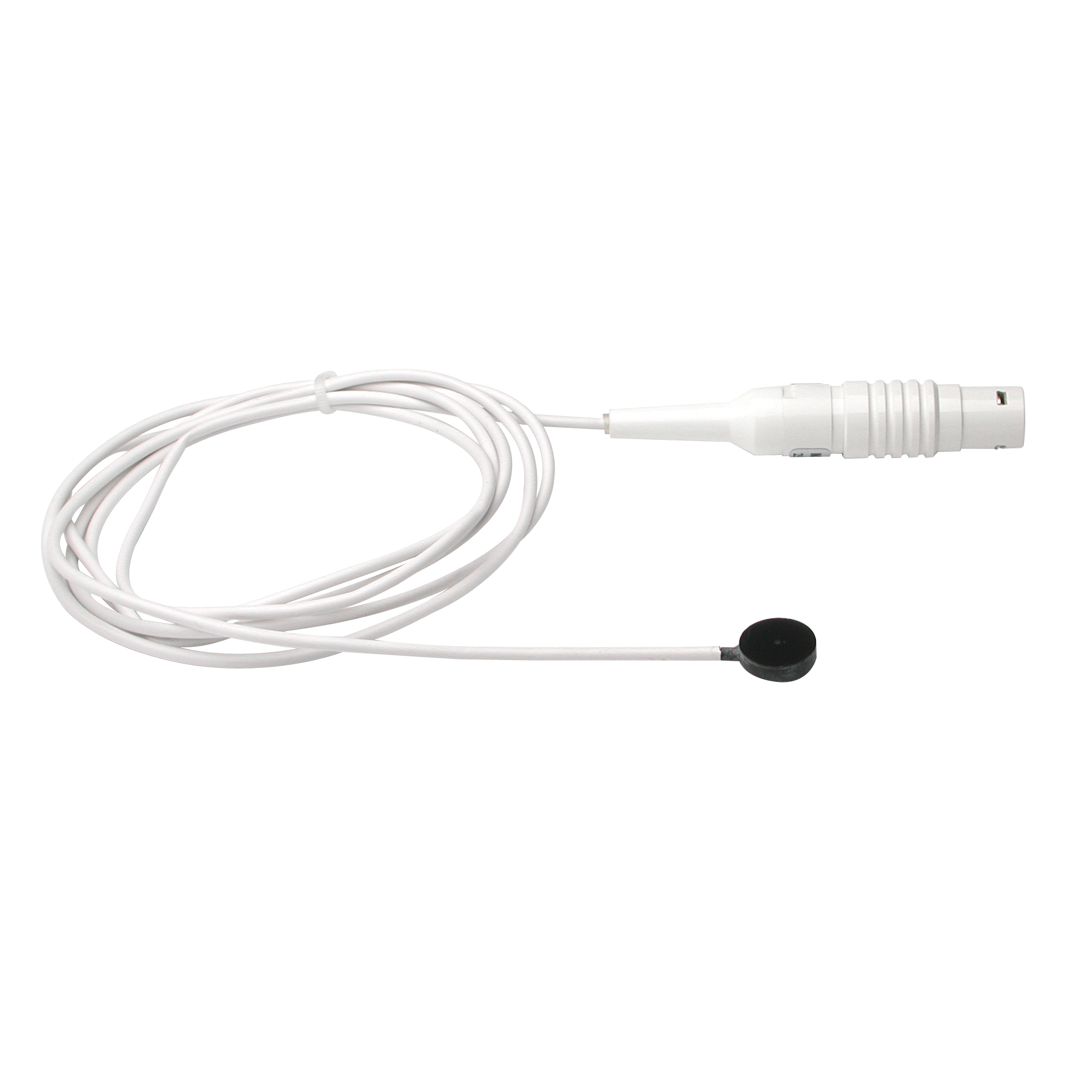

Laser Doppler Surface Probes

Overview

Laser Doppler surface probes are designed for use with the Blood FlowMeter. They connect directly and are available in variety of types to suit different applications including measuring microvascular:

  • blood flow on tissue surfaces
  • cutaneous blood flow in the digits
  • non-invasive tissue surface blood flow monitoring
  • semi-invasive blood flow monitoring from muscle and internal organ surfaces

These surface probes are considered MR Safe. Depending on the probe type, the probe can be attached to the skin surface using the Adhesive Rings for Surface Probes or by suture.

Probes shipped with the Blood FlowMeter are calibrated in the factory and do not require further calibration. For probes that are purchased separately, a Calibration Kit is required (purchase separately). Please note that the calibration solution in the Calibration Kit has a use by date.

Product Configurations

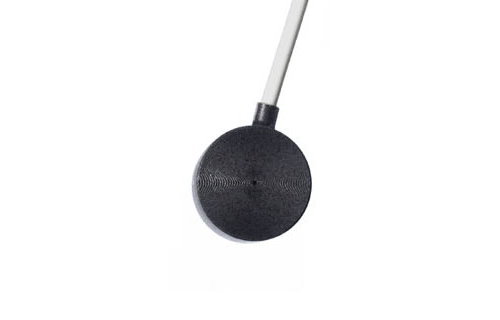

Standard Surface Probe

Product Code
MSP100XP
A robust and easy-to-handle probe that is used to monitor cutaneous blood perfusion anywhere on the body surface or microvascular blood flow on tissue surfaces. The probe has a 3 m total cable length and a sensor head with a 17 mm diameter and 8 mm thickness.

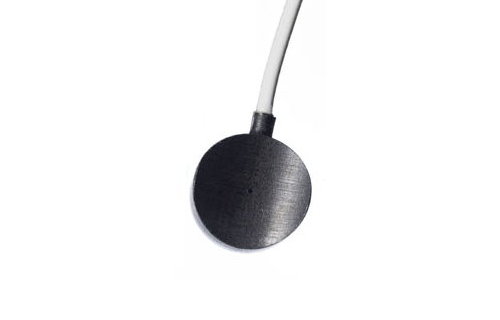

Digit Probe

Product Code
MSP110XP
A probe specifically developed with a curved geometry for measuring cutaneous blood flow in the fingers and toes. The probe has a 3 m total cable length and a sensor head with a 17 mm diameter and 8 mm thickness.

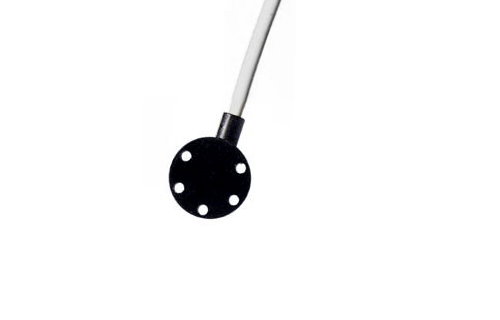

Miniature Surface Probe (Suturable)

Product Code
MSP300XP
A small and lightweight probe, which is suitable for non-invasive tissue surface blood flow monitoring or semi-invasive blood flow monitoring from muscle and internal organ surfaces. It can also be attached to the tissue by suture. The probe has a 3 m total cable length and a sensor head with a 12 mm diameter and 5 mm thickness.

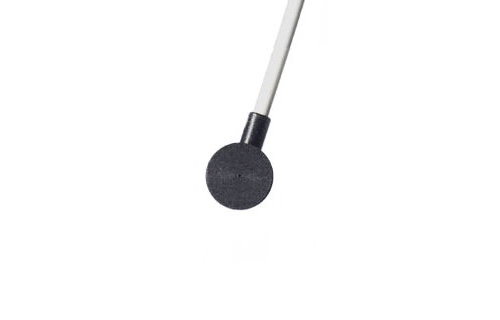

Miniature Surface Probe (Non-suturable)

Product Code
MSP310XP
A small and lightweight probe, which is suitable for non-invasive tissue surface blood flow monitoring or semi-invasive blood flow monitoring from muscle and internal organ surfaces. The probe has a 3 m total cable length and a sensor head with a 12 mm diameter and 5 mm thickness.

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Product Codes

MSP100XP
Standard Surface Probe
MSP110XP
Digit Probe
MSP300XP
Miniature Surface Probe (Suturable)
MSP310XP
Miniature Surface Probe (Non-suturable)
×
