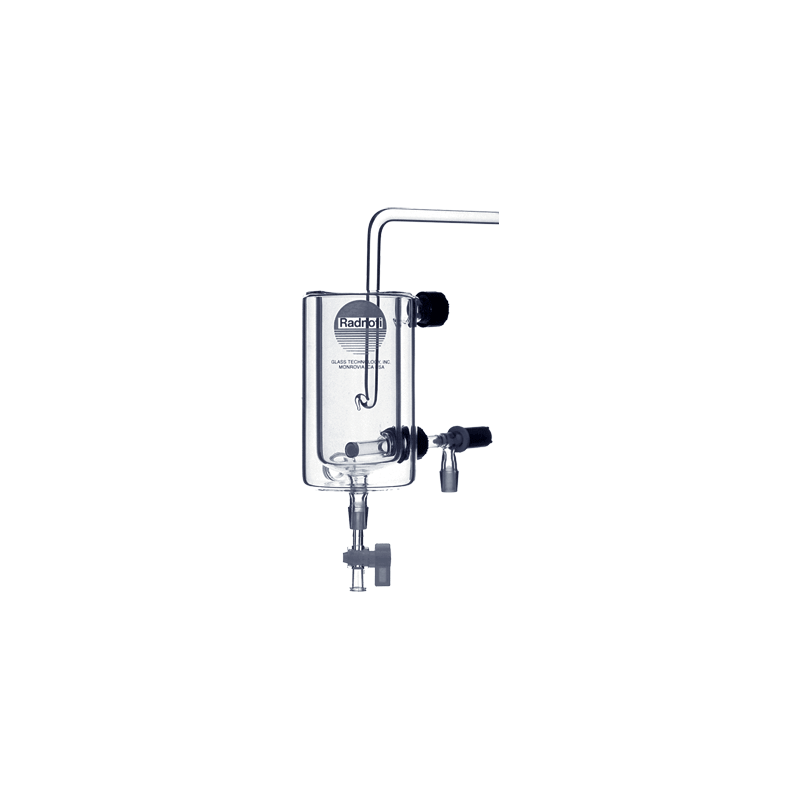

Radnoti 1583 Series Tissue Organ Baths
Overview
The Radnoti 1583 Series Tissue Organ Baths are elegant and simple, yet highly functional designed baths that have become an indispensable tool for studies in pharmacology, physiology, biochemistry and other biological sciences. They attach to Radnoti Lab Stands via Single Ring Clamps and Universal Stand Clamps. Their features include:
- A water jacket outer compartment that uses Radnoti Quick Disconnect fittings to ensure leak-resistant water jacket connections, while providing easy attachment or detachment
- Has a bottom Luer drain port that can be fitted with a 1-Way Tap to permit rapid flushing
- Allows complete removal of bath solution, which permits both effective tissue washing and complete collection of endogenously released substances
- Has an Oxygenating Tube with Teflon Needle Valve (TNV)
- Can be fully removed for easy cleaning and replacement
- Has a sintered glass disc sealed at the end of the oxygenating tube, which provides superior gas delivery
- Needle valve allows fine adjustments, which provides accurate and controlled gas dispersion into the bath
- Works either a corresponding sized Radnoti Glass Tissue Hook or a Radnoti Tissue Ring Support.
Additionally, a range of Radnoti 1583 Series Tissue Organ Baths are also designed with their drain port as a Luer Locking Port to provide increased attachment security.
For both designs, a comprehensive range of 8 bath volumes from 5 - 300 mL are available, which ensures selection of the most appropriate bath for the sample of study.
Note: The actual volumes are greater than stated volumes to allow for displacement of supports, accessories and samples. Additionally, if ordering the bath individually, components, such as Radnoti Quick Disconnect tubing and fittings will be required and are purchased separately.
Product Configurations
Radnoti 1583 Series Tissue Bath (2 mL)
A 2 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 25 mm OD, 11 mm ID, 35 mm Depth, and 60 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (5 mL)
A 5 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 32 mm OD, 15 mm ID, 50 mm Depth, and 75 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (10 mL)
A 10 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 42 mm OD, 22 mm ID, 60 mm Depth, and 85 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (25 mL)
A 25 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 51 mm OD, 25 mm ID, 80 mm Depth, and 110 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (50 mL)
A 50 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 51 mm OD, 34 mm ID, 75 mm Depth, and 110 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (100 mL)
A 100 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 75 mm OD, 46 mm ID, 95 mm Depth, and 128 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (200 mL)
A 200 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 75 mm OD, 57 mm ID, 105 mm Depth, and 110 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (300 mL)
A 300 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 105 mm OD, 75 mm ID, 105 mm Depth, and 110 mm Overall Average Height. It is supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (2 mL, Luer Lock)
A 2 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 25 mm OD, 11 mm ID, 35 mm Depth, and 60 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (5 mL, Luer Lock)
A 5 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 32 mm OD, 15 mm ID, 50 mm Depth, and 75 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (10 mL, Luer Lock)
A 10 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 42 mm OD, 22 mm ID, 60 mm Depth, and 85 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series w/ LL Tissue Bath (25 mL)
A 25 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 51 mm OD, 25 mm ID, 80 mm Depth, and 110 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series Tissue Bath (50 mL, Luer Lock)
A 50 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 51 mm OD, 34 mm ID, 75 mm Depth, and 110 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series w/ LL Tissue Bath (100 mL)
A 100 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 75 mm OD, 46 mm ID, 95 mm Depth, and 128 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series w/ LL Tissue Bath (200 mL)
A 200 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 75 mm OD, 57 mm ID, 105 mm Depth, and 110 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
Radnoti 1583 Series w/ LL Tissue Bath (300 mL)
A 300 mL Radnoti 1583 Series Hi-Tech Tissue Organ Bath with dimensions of 105 mm OD, 75 mm ID, 105 mm Depth, and 110 mm Overall Average Height. It is attached with a Luer lock drain port fitting, and supplied with an Oxygenating Tube with Teflon Needle Valve and a 1-Way Tap.
