Radnoti Lab Stands, Support Rods and Stand Clamps
Overview

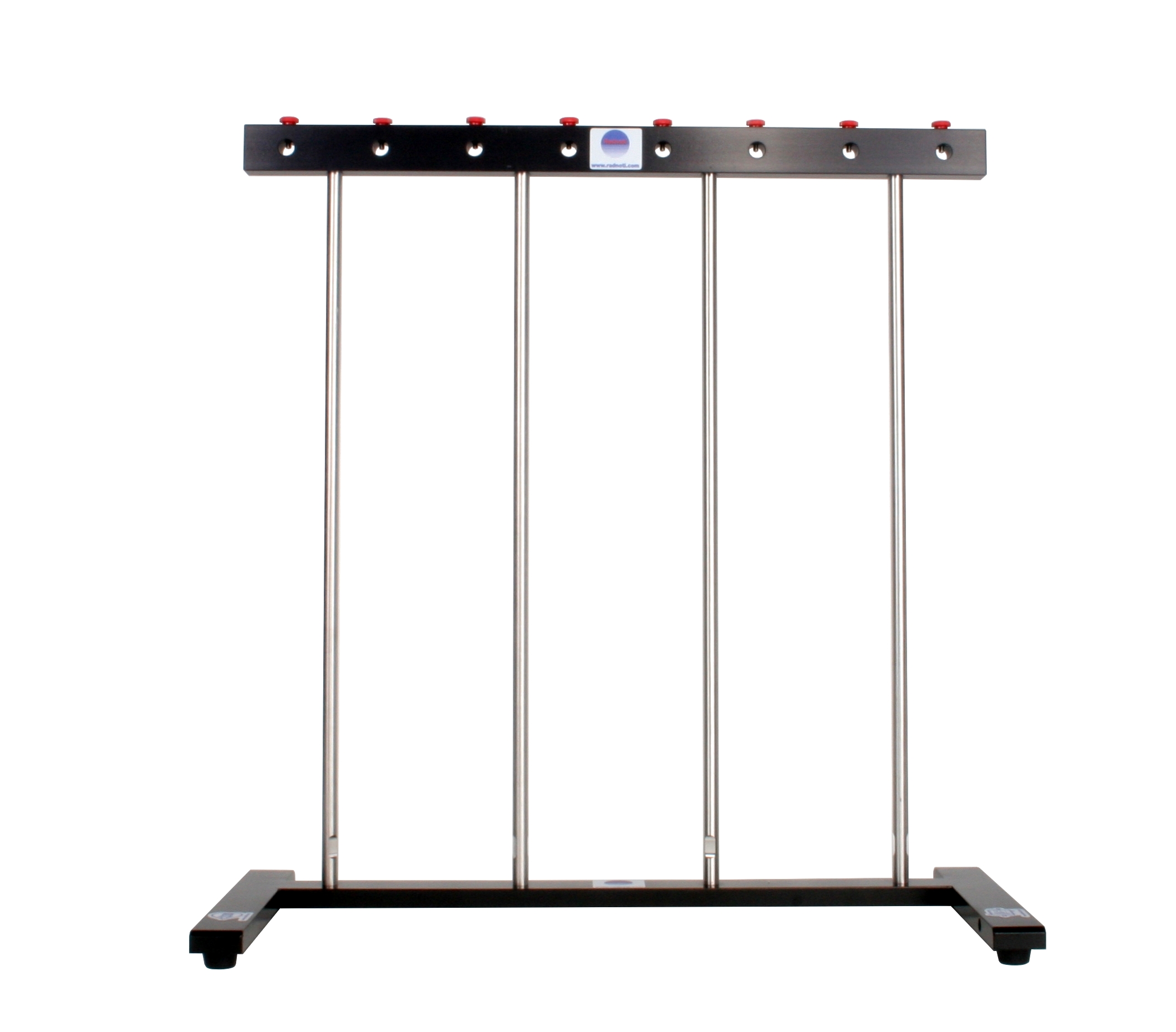

Radnoti Lab Stands

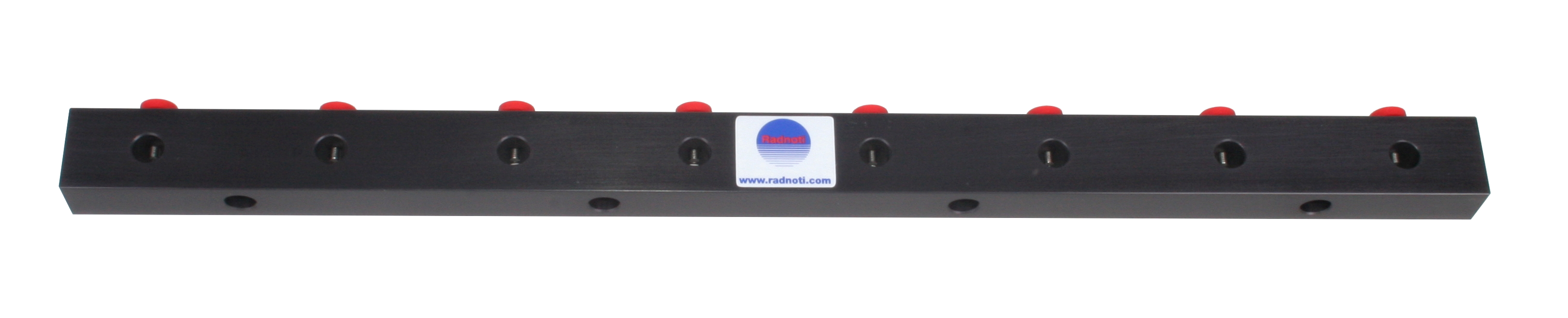

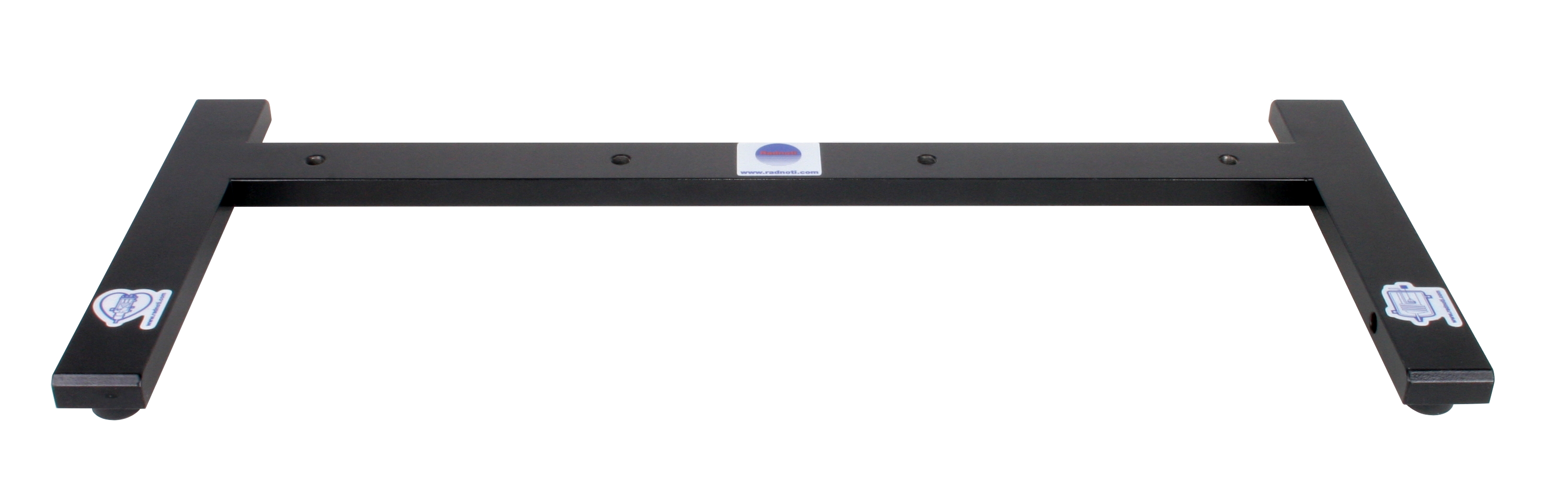

Radnoti Lab Stands are designed for both durability and flexibility, which are ideal for the laboratory bench that can cater to a range of apparatus configurations. It consists of a heavy duty, stainless steel steel base that provides ballast and direct attachment of a Radnoti Stainless Steel Support Rod. The steel base is available in two sizes, the smaller holding 1 or 2 support rods and larger holding 1-4 support rods. Additionally, there are corresponding Stainless Steel Stabilizer Bars that provide additional rod stability when multiple rods are being attached.
The Radnoti Stainless Steel Support Rods are available in lengths of 12” and 24”. They can be directly screwed into a stainless steel base or joined sequentially to create a longer rod. As an example, a 12” rod can be joined to a 24” rod to create a 36” rod. Therefore, a rod length can be extended by increments of 12” or 24”.
Radnoti Lab Stands are used in Radnoti Organ Baths, Isolated Rodent Liver/Kidney, Langendorff and Working Heart setups.
Radnoti Universal Stand Clamps
Simple to use clamps with an unique V slot configuration that provides easy component (i.e. ring clamps) attachment or detachment from a 1/2″ to 1/4″ outer diameter support rod. Attachment or detachment is controlled via its red thumb screws on either side. Adding or removing components or fixtures is simple and straightforward. Simply loosen the thumb screw to ensure a sufficient gap for the support rod, hook it on and tighten the thumb screw to attach. There is no need to disassemble the existing lab stand or remove any attached components to add an additional component.
Additionally, there is a stand clamp that is specifically designed for the attachment of glass hooks or supports to the support rod. A yellow capped nylon screw replaces the red thumb screw on one end. Therefore, the nylon screw will not damage the glass.
Product Configurations
Stainless Steel Support Rod (12")
A Radnoti 12" stainless steel support rod that is used in many Radnoti apparatuses. It can be joined with another stainless steel support rod to extend its length, such as adding a 24” rod to create a 36” rod.
Stainless Steel Support Rod (24")
A Radnoti 24" stainless steel support rod that is used in many Radnoti apparatuses. It can be joined with another stainless steel support rod to extend its length, such as adding a 12” rod to create a 36” rod.
Radnoti Universal Stand Clamp (SSteel)
A Radnoti Universal Stand Clamp that is made from anodized aluminum with stainless steel screws (red capped thumb screw). One end allows attachment of metal rods (i.e. Ring Clamps), while the other allows easy placement or removal from 1/2" to 1/4" diameter lab stand support rods.
Radnoti Universal Stand Clamp (Nylon)
A Radnoti Universal Stand Clamp that is made from anodized aluminum with a stainless steel screw (red capped thumb screw) on one end and a nylon screw (yellow capped thumb screw) on the other. The yellow capped nylon screw allows attachment of glass rods (i.e Glass Tissue Hooks, L Glass Supports, Radnoti 2-Way TNV "Y" Manifold), while the red thumb screw allows easy placement or removal from 1/2" to 1/4" diameter lab stand support rods.
