Radnoti Organ Bath Systems
The Radnoti Organ Bath Kits combine modular PowerLab data acquisition system options, a Bridge Amplifier, Isometric Transducers and LabChart software with a Radnoti Tissue-Organ Bath Apparatus.
Overview
Radnoti Organ Bath Systems combine the modular PowerLab data acquisition system options, a Bridge Amplifier, Isometric Transducers and LabChart software with a Radnoti Tissue-Organ Bath Apparatus. These organ bath systems provide a controlled environment for conducting isolated tissue studies without the influence of in vivo systemic variables. These tissue bath systems also provide all the essential components for recording and analyzing data from isolated tissue experiments for pharmacology applications and related disciplines.

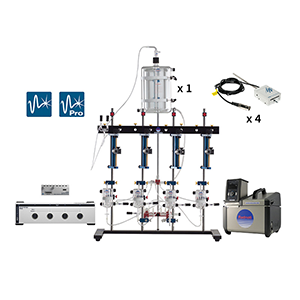

Radnoti 4 Chamber Organ Bath System Components:
- 1 x Front End Interface
- LabChart Pro software, including the Dose Response Add-On
- Quad Bridge Amp
- 4 x Force Transducers (20 g)
- Radnoti Thermal Bath/Circulator
- Radnoti 4 Chamber Tissue-Organ Bath

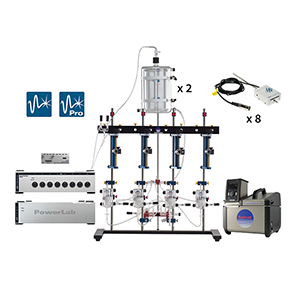

Radnoti 8 Chamber Organ Bath System Components:
- PowerLab C
- 1 x Front End Interface
- LabChart Pro software, including the Dose Response Add-On
- Octal Bridge Amp(s)
- 8 x Force Transducers (20 g)
- Radnoti Thermal Bath/Circulator
- Radnoti 8 Chamber Tissue-Organ Bath

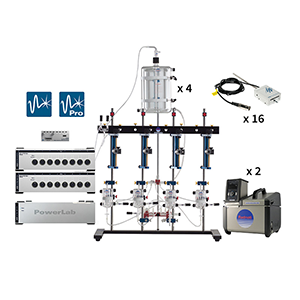

Radnoti 16 Chamber Organ Bath System Components:
- PowerLab C
- 2 x Front End Interfaces
- LabChart Pro software, including the Dose Response Add-On
- Octal Bridge Amp(s)
- 16 x Force Transducers (20 g)
- Radnoti Thermal Bath/Circulator
- Radnoti 16 Chamber Tissue-Organ Bath
Take a closer look at the Radnoti Organ Bath System
1
2
3
4
5
6
7
8
9
10
Thermal Bath/Circulator allows temperature control in the range from ambient temperature to 120°C.
1660 Series Hi-Tech Tissue Organ Bath comes in a variety of sizes, is water-jacketed, and provides a port for an oxygenating tube similar to the 1583 Series. However, this chamber series also offers a separate fill port with a warming coil, and an overflow port for plumbing into the system's overflow circuit to prevent the perfusate from overflowing the chamber.
*25 mL pictured
Alternative options:
1585 Series Tissue Bath with Built-In Electrodes
The standard Radnoti borosilicate glass tissue hook, which are available in a range of sizes to suit different Tissue Organ Bath sizes.
Also available:
Tissue Ring Supports designed specifically for mounting tissue ring samples such as aortic, intestinal, vascular, or tissue ring segments.
Tissue Clips designed to simplify the tedious task of mounting a sample tissue to a tissue hook and a force transducer.
Platinum Stimulating Electrodes: A wide range of field stimulating electrodes are available.
Two-Way Teflon Needle Valve "Y" Manifold splits a single gas source to two gassing lines and is used to balance the gas flow between different oxygenation circuits. Used in most Radnoti systems.
Oxygenating Bubbler with perfusate inlet port for water-jacketed reservoirs. Provides ports for attaching overflow circuits to flow back into the reservoir, oxygenates the perfusate in the reservoir, and vents the reservoir. Used with all Radnoti systems and offered in a variety of sizes to match different sized reservoirs.
Water-Jacketed Reservoir used to store, warm, and oxygenate perfusate for the perfusion circuits. Offered in a variety of volume sizes, and used with all Radnoti systems.
*2 Liter pictured
Sensitive isometric force transducer, ideal for isolated tissue studies where small forces up to 20 g are expected.
Also available:
Force Transducer (0-2g)
LabChart and LabChart Pro Software
Creates a platform allowing you to acquire biological signals from multiple sources simultaneously and apply advanced calculations and plots.
A four-channel, non-isolated bridge amplifier designed to allow a C Series Front End Inteface or traditional PowerLab to connect to most DC bridge transducers.
Converts analog data from existing (and majority of legacy) ADInstruments Front-Ends such as Bridge Amps and Bio-Amps, so that they can be digitally sampled by the PowerLab C.
Product Configurations
Key Features
- Modular construction enables easy updating/substitution of various chamber sizes
- Water-jacketed tissue chambers ensure uniform circulation and heating
- May be used in single-pass or recirculating flow modes
- Easy-to-use "Quick Disconnect" fittings
- Available chamber sizes include 5, 10, 25, 50, 100, 200 or 300 ml
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
Ordering Information:
When ordering one of these tissue-organ bath systems (for example, PL3516B62/C-V), please specify the following:
- Tissue Chamber size (C) = 5, 10, 25, 50, 100, 200 or 300 ml
- Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V
Thermo Bath/Circulator:
- Reservoir Volume: 17 Liters (4.5 Gallons)
- Temperature range: +12 °C to +200 °C
- Temperature Stability: ±0.01 °C
- Maximum Pump Flow Rate: 15 L/min
- Bright, LED digital display
- Stainless steel reservoir with drainage
- Low water level safety shutoff
- 2 year parts and labor warranty
Note:
- Countries with 115 V power service, the Thermal Circulator Pump requires a 20 AMPS outlet.
- Countries with 220 V power service, the Thermal Circulator Pump requires a 15 AMPS outlet.
