How do I find out what channel settings were applied when I recorded my data?

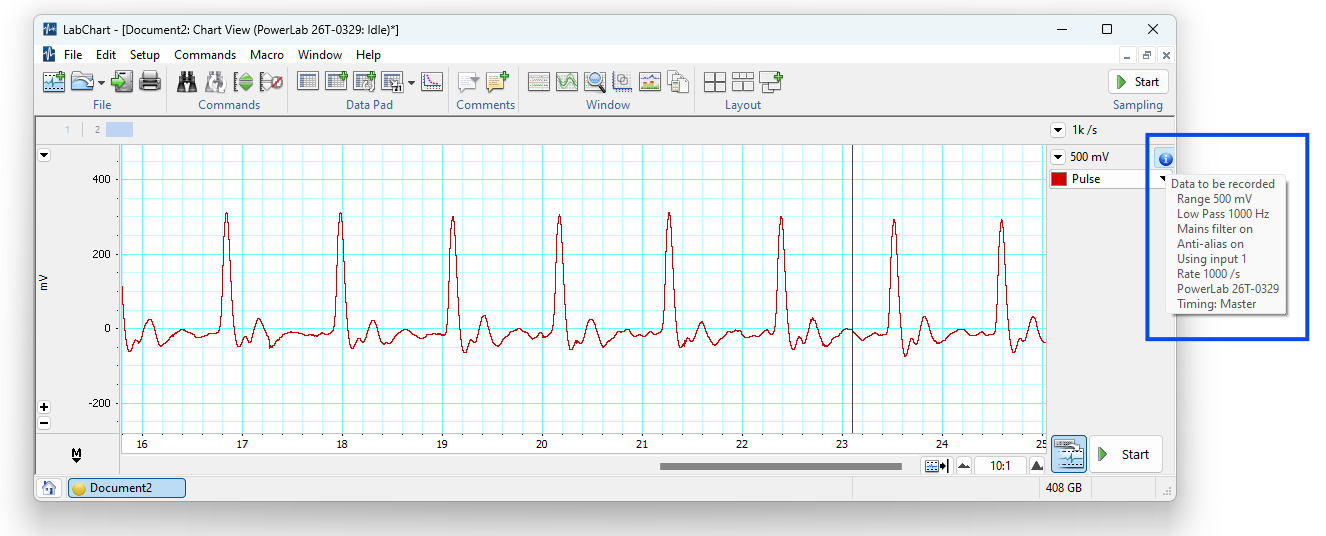

The first option is to select the information icon to the far right of the channel. This will present the sampling rate and any details about calculations applied to the channel. Before recording, the icon will be blue and contain information about the current channel settings, including sampling rate, recording range and which data input is being used.

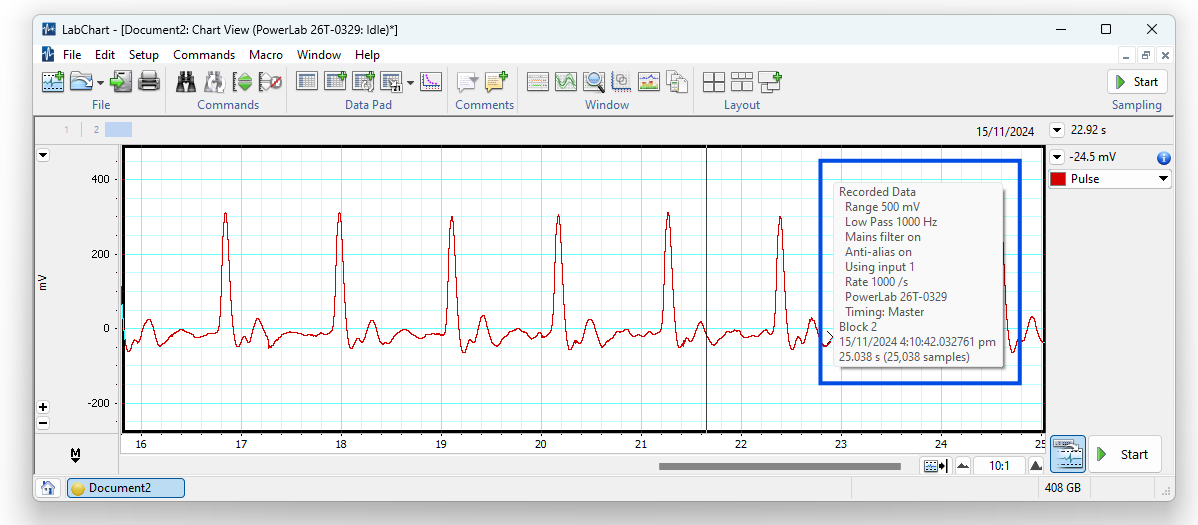

Select and hold the left mouse button in the data channel for more extensive details about the recording settings. This will display a small dialogue about the sampling rate, recording range, unit conversions or channel calculations, and the time, date, and number of sampling points in the recording block.

For further technical assistance with this or any other issue, please contact ADInstruments Technical Support by clicking HERE.
