What is the pinout for the connector on the EPC-5A EPR Catheter Interface Cable?

The EPC-5A Catheter Interface Cable (5 ft) is used with Millar Electrophysiology (EPR) Catheters and allows these catheters to be connected to any ADInstruments Bio Amp, either via a Bio Amp Cable or directly to the 1.5 mm input connectors used on some models. The cable is configured with a REDEL connector to eight (8) 1.5 mm shrouded sockets. It includes a pack of ten (10) 2 mm pin adapters to allow connection to previous generations of ADInstruments Bio Amplifiers, current generation ADInstruments Stimulators, or to third-party hardware.

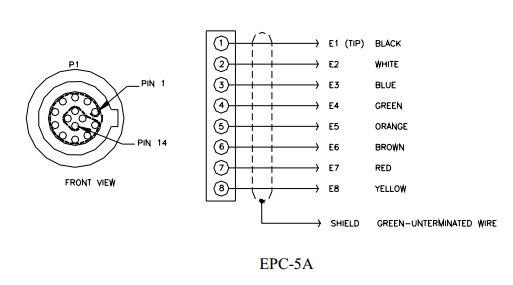

The connections to the eight electrodes are color coded. Please refer to the schematic diagram below and the Eight Electrode Interface Cable manual for additional details regarding the pinout of the EPC-5A cable.
