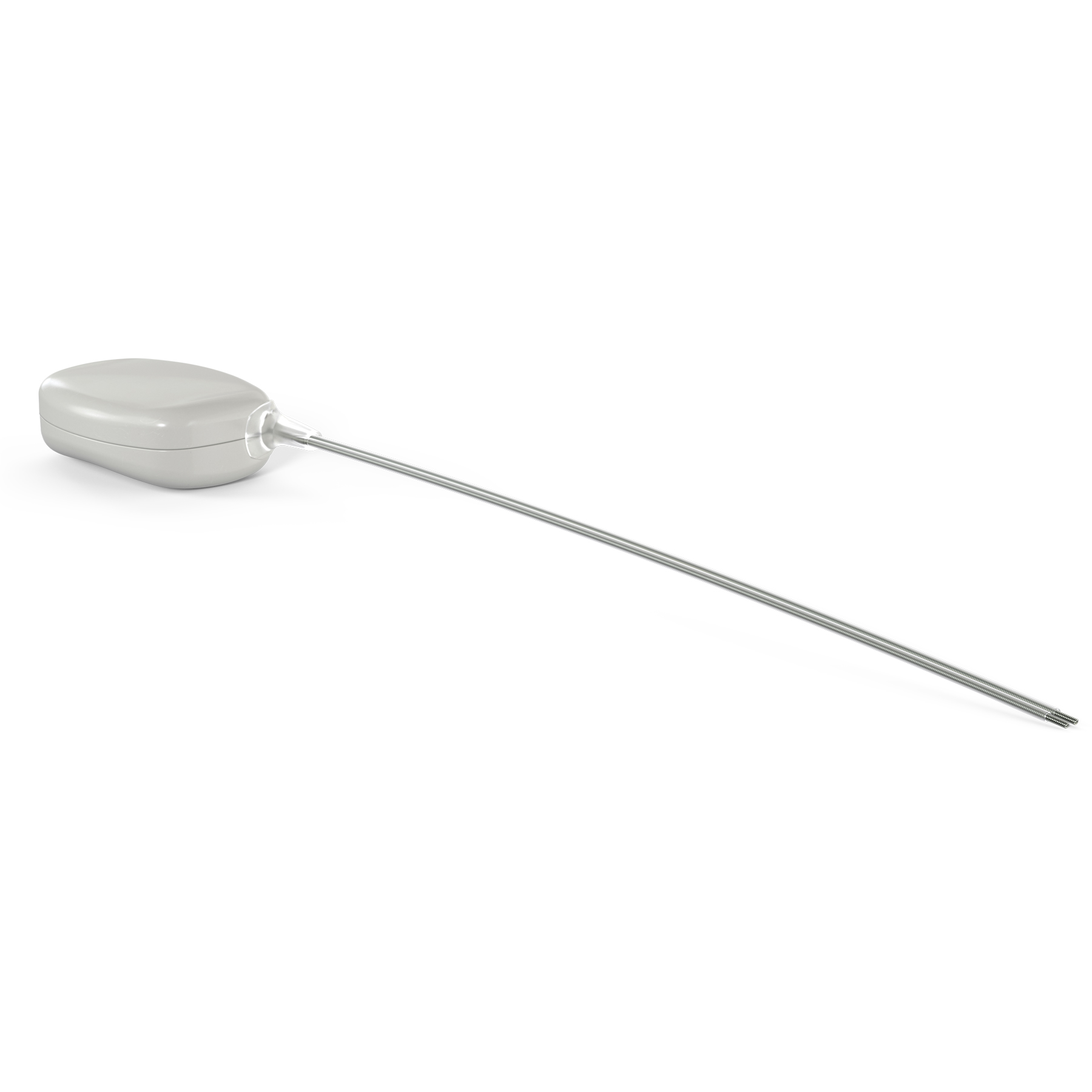

Mouse Biopotential Telemeter
Record ECG, EEG, or EMG
Kaha Sciences mouse telemeters provide the ideal solution for research scientists looking to record high quality wireless biopotential signals (ECG, EEG, or EMG) and index of animal activity in mice over 22 grams.
Overview
Kaha Sciences mouse telemeters provide the ideal solution for research scientists looking to record high quality wireless biopotential signals (ECG, EEG, or EMG) and index of animal activity in mice over 22 grams.
Wireless data transmission and a high 2kHz sampling rate enables new research possibilities. Accurately measure parameters traditionally restricted to acute or tethered experiments from free-moving animals in their cages.
Biopotentials
Index of activity
Benefits
- Powered by the tBase using patented wireless inductive technology, providing higher sampling rates (2 kHz) and temporal resolution for superior data quality
- Supports continuous recording for extended sampling periods
- Use the index of animal activity to help interpret data and refine research protocols
- Unique contoured shape designed to minimize irritation during subcutaneous implantation on the flank of mice
- Provides improved animal welfare by allowing the subject to move freely within the cage and fully software controlled to reduce handling/impact of stress. Find out more about the benefits of telemetry.
Simple and Customizable Telemetry System Setup
Configure a Kaha Sciences Mouse telemetry system to meet your exact research needs. A typical mouse wireless telemetry system setup requires one tBase and Telemeter per animal, with only a single Configurator system required for each laboratory.
- Select and pair transmission frequencies between tBases and their Telemeters using the Configurator and ConfigSoft
- Surgically implant the Telemeter
- Connect the tBase to a PowerLab and/or Instrument Interface via BNC.
You are then ready to analyze your data using LabChart 8 or LabChart Lightning.
Configure a system to meet your exact needs
Mouse Biopotential
Telemeter
+
Find out more about Small Animal Telemetry with ADI and Kaha Sciences
Required Products
- tBase (one per telemeter)
- Configurator System (one per laboratory)
- Instrument Interface plus PowerLab C OR a traditional PowerLab
- LabChart or LabChart Lightning
Related
Products
Research Applications
Animal Telemetry
Evoked Responses and Stimulation
Animal Neuroscience
ECG
Animal Autonomic
HRV
Animal Autonomic
Biopotentials
Animal Telemetry
Key Features
- Sampling rate 2 kHz - the highest sampling rate available for chronic mouse telemetry studies
- Single-use telemeter shipped sterile and ready for implantation
- Encased in durable, biocompatible hard-shell (ceramic)
- Each telemeter provides measurement of a single biopotential signal (ECG, EEG or EMG), activity index, and data received notification
- The telemeter does not contain a battery. Instead it receives power from inductive wireless power transfer when within 7 cm (vertical range) of the tBase surface.
- Reliable data recording capabilities with no data loss, crosstalk, or interference - 40 independent data collection frequencies to choose from using Configurator System
- Suitable for use in mice >22g
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
| Telemeter model | MT10B | ||||||
|---|---|---|---|---|---|---|---|
| Subject | Mouse >22g | ||||||
| Biopotential input range | + 2.5 mV | ||||||
| Biopotential resolution | 12 bit A/D | ||||||
| Biopotential high pass characteristics | AC coupled, single pole, -3dB point at 2 Hz | ||||||
| Biopotential low pass characteristics | AC coupled, single pole, -3dB point at 440 Hz | ||||||
| Biopotential electrode leads | 8 cm length, coiled stainless steel | ||||||
| Biopotential electrode diameter | 0.42 mm | ||||||
| Sampling frequency | 2 kHz | ||||||
| Transmitted signal | Fully digital at 2.4 GHz | ||||||
| Transmission frequencies | 40 independent channels available; configured by user | ||||||
| Minimum animal weight | 22g | ||||||
| Outer material | Ceramic (telemeter body) and polyurethane (leadset) | ||||||
| Volume | 1.8 cm3 | ||||||
| On-off mechanism | Powered when place on the tBase and deactivated when removed from the tBase | ||||||
| Analog output calibration values |
|
