What are the pin assignments for the ADInstruments' 8-pin DIN ports?

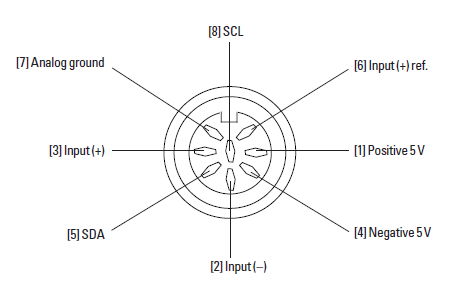

ADInstruments' 8-Pin DIN ports have the following pin assignments:

ADInstruments PowerLab Pod Port


ADInstruments Bridge Amplifier Port

For details on adapting your own Transducers to a PowerLab Pod port or Bridge Amplifier, please follow this link.
