Why does my Calibration Panel in Lt show no Units for my Converted Values?

The Calibration Panel in Lt requires that a Sampling Panel be on the same Page as it, as it is from this Sampling Panel that it draws in the Calibration Functionality.

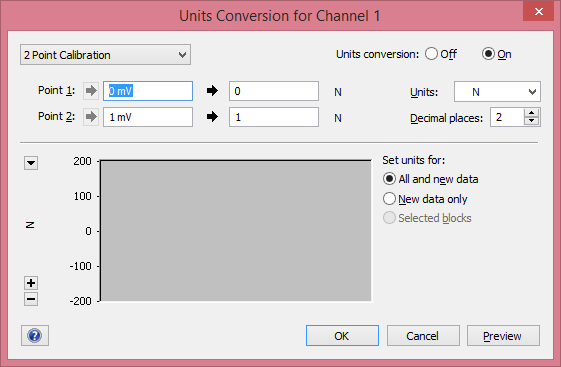

As such, the Calibration Panel will not show Units for the converted values unless the LabChart Settings File being used in the Sampling Panel has the Unit defined in it's Units Conversion dialogue:
servlet.ImageServer?id=015w0000002n3kn&oid=00D20000000HncM

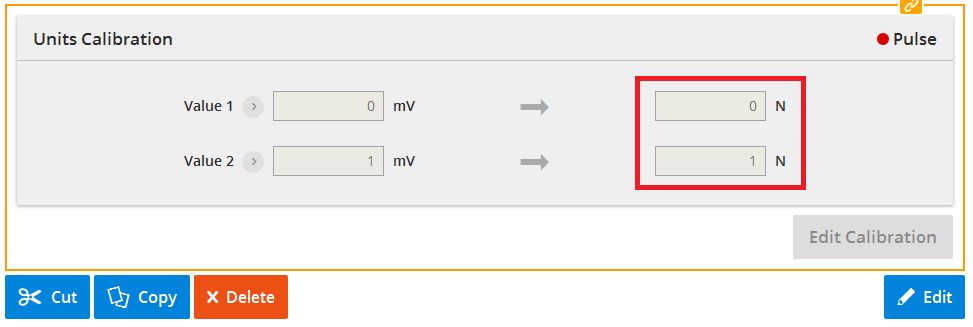

To have Units appear in the Calibration Panel, the Settings File being utilised must have the Unit defined in it's Units Conversion dialogue:
servlet.ImageServer?id=015w0000002n3l2&oid=00D20000000HncM
