Biopotential Electrodes and Lead Wires
A range of lead wires are available for connection to ADInstruments Bio Amps directly or via respective compatible Bio Amp Cables.
Overview
A range of lead wires are available for connection to ADInstruments Bio Amps directly or via respective compatible Bio Amp Cables.
Shielded or unshielded?
If electrical interference in your signal is a problem, you may benefit from using shielded subject cables and lead wires.
Product Configurations

Lead Wires (3 Snap-On)
A 3-pack of unshielded lead wires suitable for connection to the 3-lead Bio Amp Cable (unshielded).
- The lead wires are 98 cm in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- Can also be used with the Quad and Octal Bio Amp.
- May be cold sterilized and left to air dry.

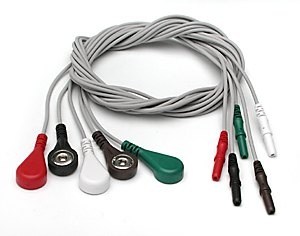

Lead Wires (5 Snap-On)
A 5-pack of unshielded lead wires suitable for use with any Bio Amp Cable.
- The lead wires are 98 cm in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- Can also be used with the Octal Bio Amps.
- May be cold sterilized and left to air dry.

Lead Wires (1.8 m, 10 snap on)
A 10-pack of unshielded lead wires suitable for use with any Bio Amp.
- The lead wires are 1.8 m in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- Can be connected directly to Quad and Octal Bio Amps and to Single and Dual bio-amps via a Bio-Amp cable.

Lead Wires (1 m, 10 Snap-On)
A 10-pack of unshielded lead wires suitable for use with any Bio Amp.
- The lead wires are 1 m in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- Can be connected directly to Quad and Octal Bio Amps and to Single and Dual bio-amps via a Bio-Amp cable.

Shielded Biopotential Electrodes (Ag-AgCl, 4 mm, 3 pk)
Shielded Biopotential Electrodes (Ag-AgCl, 4 mm, 3 pk) designed to record biopotentials such as EMG, EEG via the 3 Lead Shielded Bio Amp Cable.
- The 4 mm sensor is made from a fine grain, homogeneous mixture of Ag-AgCl compressed and sintered for strength and stability. The electrode is 1 mm thick and encapsulated in durable housings.
- Supplied with PVC insulated lead wires and terminated with 1.5 mm safety sockets.
- Can also be used with the Quad and Octal Bio Amp.

Shielded Biopotential Electrodes (Ag-AgCl, 4 mm, 5 pk)
Used to record biopotentials such as EMG, EEG via the 5 Lead Shielded Bio Amp Cable.
- The 4 mm sensor is made from a fine grain, homogeneous mixture of Ag-AgCl compressed and sintered for strength and stability.
- The electrode is 1 mm thick and encapsulated in durable housings. It is supplied with PVC insulated lead wires and terminated with 1.5 mm safety sockets.
- Can also be used with the Quad and Octal Bio Amp.

Shielded Biopotential Electrodes (Ag-AgCl, 8mm, Hole, 3 pk)
Shielded biopotential electrodes used to record biopotentials such as EMG, EEG via the 3 Lead Shielded Bio Amp Cable.
- The 8 mm sensor is made from a fine grain, homogeneous mixture of Ag-AgCl compressed and sintered for strength and stability.
- The electrode is 1 mm thick, encapsulated in durable housings and has a 2 mm hole for injecting gel.
- Supplied with PVC insulated lead wires and terminated with 1.5 mm safety sockets.
- Can also be used with the Quad and Octal Bio Amp.

Shielded Biopotential Electrodes (Ag-AgCl, 8mm, Hole, 5 pk)
Shielded biopotential electrodes used to record biopotentials such as EMG, EEG via the 5 Lead Shielded Bio Amp Cable.
- The 8 mm sensor is made from a fine grain, homogeneous mixture of Ag-AgCl compressed and sintered for strength and stability.
- The electrode is 1 mm thick, encapsulated in durable housings and has a 2 mm hole for injecting gel.
- Supplied with PVC insulated lead wires and terminated with 1.5 mm safety sockets.
- Can also be used with the Quad and Octal Bio Amp.



Shielded Lead Wires (5 Micro-Hooks, 25cm)
A set of five shielded lead wires (25 cm) with Micro-Hooks.
- The Micro-Hooks are constructed of molded nylon with a stainless steel spring and gold-plated beryllium copper hooks.
- Used with the 5 Lead Shielded Bio Amp Cable.
- Supplied with the Nerve Chamber with Cable Options C.

Shielded Lead Wires (5 pk)
Suitable for use with the 5 Lead Shielded Bio Amp Cable. Can also be used with 3 Lead Shielded Bio Amp Cable if required.
- The lead wires are 98 cm in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- May be cold sterilized and left to air dry, but do not autoclave.

Shielded Lead Wires (B/G/W, 3 pk)
Suitable for connection to the EOG Pod.
- The lead wires are 98 cm in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- May be cold sterilized and left to air dry, but do not autoclave.
- Similar to the Shielded Lead Wires (B/R/W, 3 pk) and, therefore, can also be used with the 3 Lead Shielded Bio Amp Cable but noting the color differences.

Shielded Lead Wires (B/R/W, 3 pk)
Suitable for connection to the 3-Lead Shielded Bio Amp Cable.
- The lead wires are 98 cm in length with 4 mm 'snap-on' connectors for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes.
- May be cold sterilized and left to air dry, but do not autoclave.
- Similar to the Shielded Lead Wires (B/G/W, 3 pk) and, therefore, can also be used with the EOG Pod but noting the color differences.
