Perivascular and Tubing Flowmeters

The Transonic Flowmeters provide accurate and precise measurement of fluid volume flow in vivo, in vitro and ex vivo, which can be recorded with PowerLab data acquisition systems.

Overview

The Transonic Flowmeters provide accurate and precise measurement of fluid volume flow in vivo, in vitro and ex vivo, which can be recorded with PowerLab data acquisition systems. Based on patented ultrasound transit-time technology, its modular design allows mixing and matching of any combination of Perivascular or Tubing Flowmeter Modules in a dual or triple channel console to suit the experimental design. Consoles can also be ordered with a channel blank for future addition of another Flowmeter Module.

The Perivascular Flowmeter Module is designed for used with a range of corresponding flowprobes, which provides acute or chronic blood flow measurement from a single vessel in a range of animal species (mice through to pigs and sheep). A range of corresponding flowsensors (in-line or clamp-on) are also available for use with the Tubing Flowmeter Module to measure fluid flow in a range of laboratory tubing.

Please note that Transonic Flowmeters are not supplied with either flowprobes or flowsensors, and must be ordered separately.


Important Product Information:

All Transonic Perivascular Flow Systems, Perivascular Flowmeters, and Flowprobes will be discontinued on January 1, 2024. Prior to this, quantities may be limited due to supply constraints. Calibration, servicing, and repair for Perivascular Flowmeters will be supported through 31 Dec 2025.

Transonic Tubing Flow Systems and Tubing Flowmeters will continue to be sold and supported going forward without an end date. There will be some updates to Flowsensor availability, more information can be found here.

If you have any questions, please contact your nearest ADInstruments Representative for further information

Product Configurations

Perivascular Flowmeter Module

Product Code
TS420

Used with a suitable flowprobe (purchase separately) to measure blood flow in a range of vessels.


Tubing Flowmeter Module

Product Code
TS410

Used with a suitable flowsensor (purchase separately) to measure fluid flow in laboratory tubing.

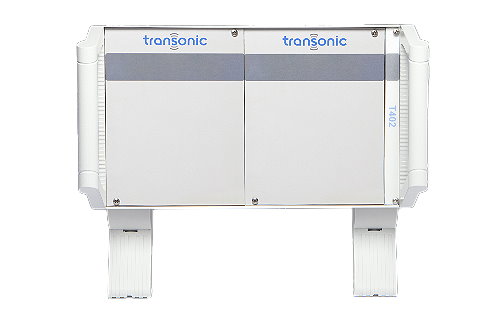

Dual Channel Console

Product Code
T402

Two channel console to fit any combination of up to two Perivascular or Tubing Flowmeter Modules.


Triple Channel Console

Product Code
T403

Three channel console to fit any combination of up to three Perivascular or Tubing Flowmeter Modules.


Related

Research Applications

Invasive Blood Flow
Cardiovascular Hemodynamics
Isolated Organ
In Vitro Pharmacology + Isolated Tissue and Organs
Tubing Flow
In Vitro Pharmacology + Isolated Tissue and Organs

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Technical

Perivascular Flowmeter Module

  • Accurate volume flow measurement of less than 1 ml/min.
  • Ultrasound transit-time technology.
  • Analog outputs for direct connection to PowerLab.
  • 160 Hz bandwidth to accurately characterize flow dynamics at high mouse heart rates.
  • Analog meter displays voltage proportional to flow.
  • Easy-access front panel receptable for chronic probe calibration keys.
  • Expanded ultrasonic frequency range. Implantable 0.5 mm and 0.7 mm mouse probes.

Tubing Flowmeter Module

  • Programmable calibration for different liquids.
  • Lowest signal-to-tubing ratio ever for tubing flow measurement.
  • Programmable gain for user calibration with different fluid/temperatures.
  • Programmable alarms: low/high flow; received signal threshold alarm.
  • Easy-to-read numeric LED displays set-up/system status.

Product Codes

TS420
Perivascular Flowmeter Module
TS410
Tubing Flowmeter Module
T402
Dual Channel Console
T403
Triple Channel Console
×
