Perivascular and Tubing Flow Systems
PL3508B15, PL3508B11, PL3508B13, PL3508B12, PL3508B14
Configurations

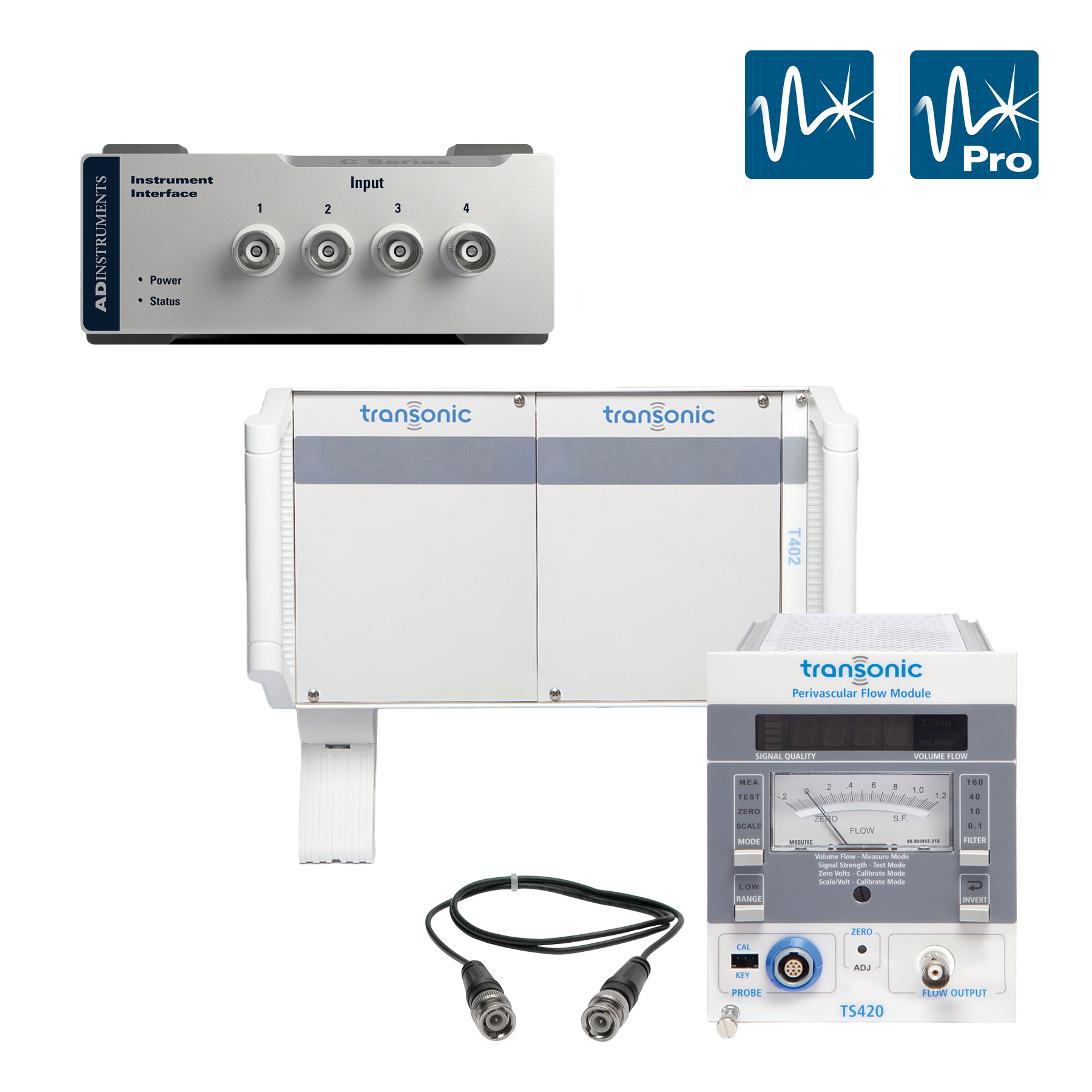

One Channel Perivascular Flow System
RSBTSI001
Measure perivascular blood flow from a single vessel type from a range of animal species via suitable Flowprobes placed external to the vessel.

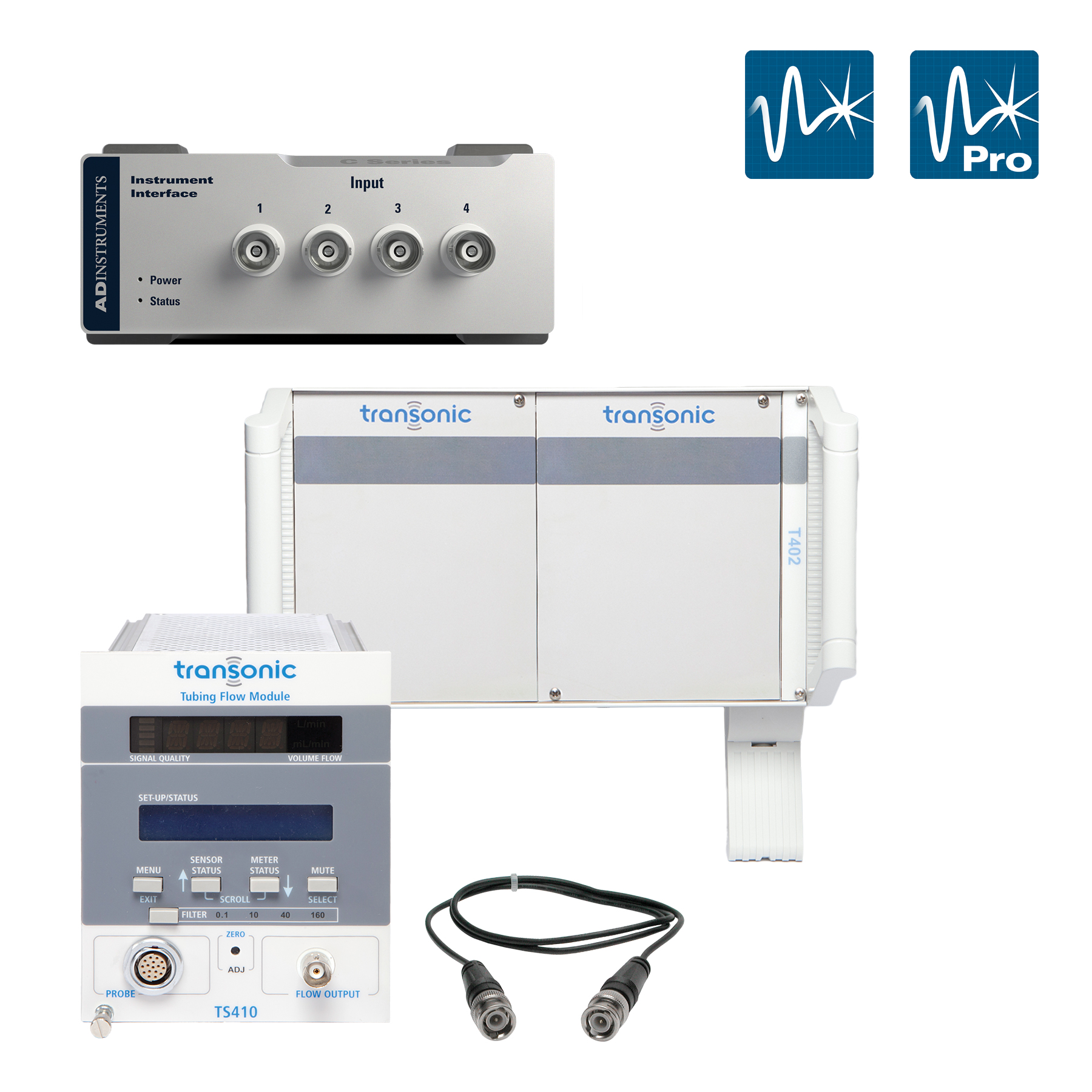

One Channel Tubing Flow System
RSBTSI002
Measure tubing fluid flow from a single laboratory tube via suitable Flowsensors.

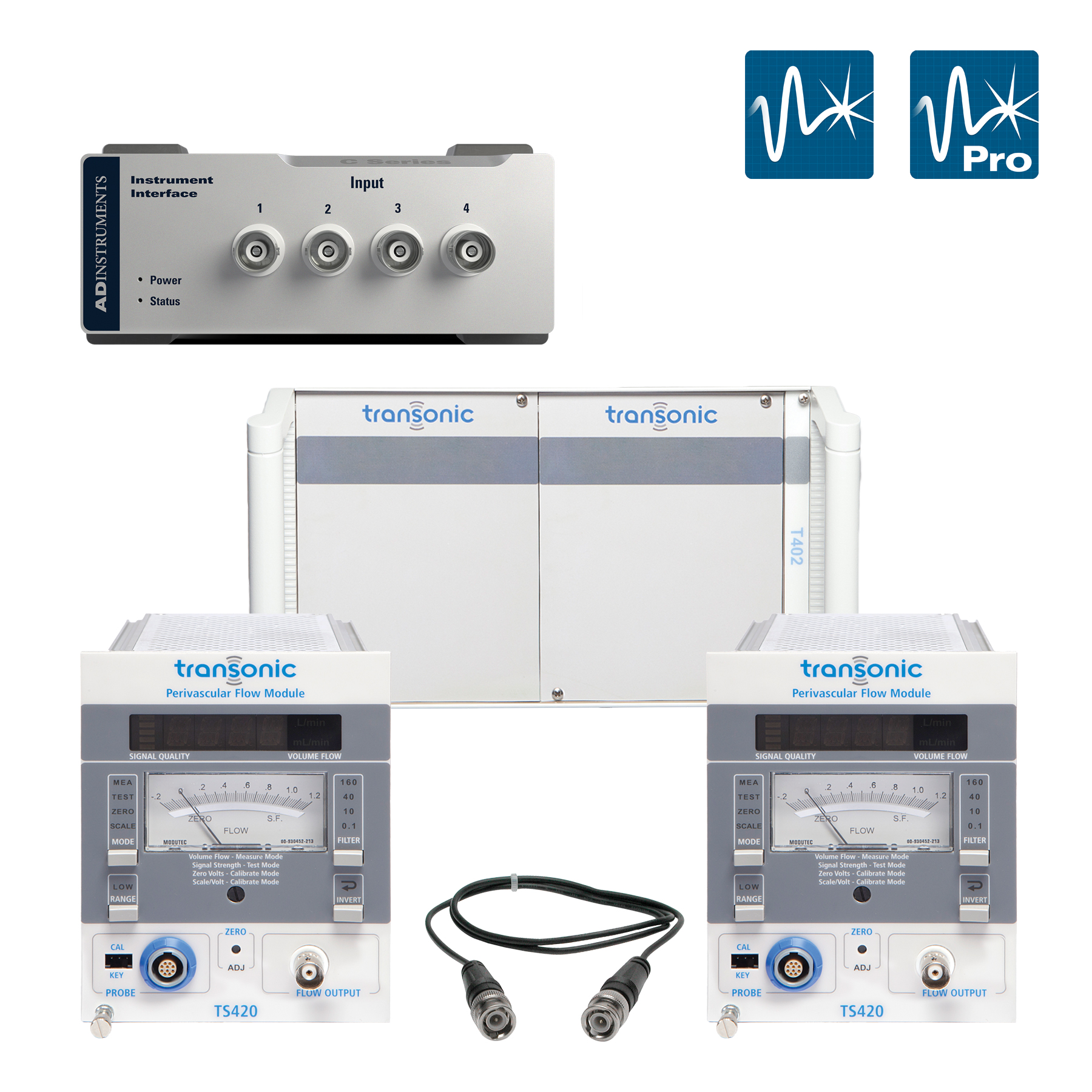

Two Channel Perivascular Flow System
RSBTSI003
Measure two perivascular blood flow measurements from a range of animal species via suitable Flowprobes placed external to the vessel.

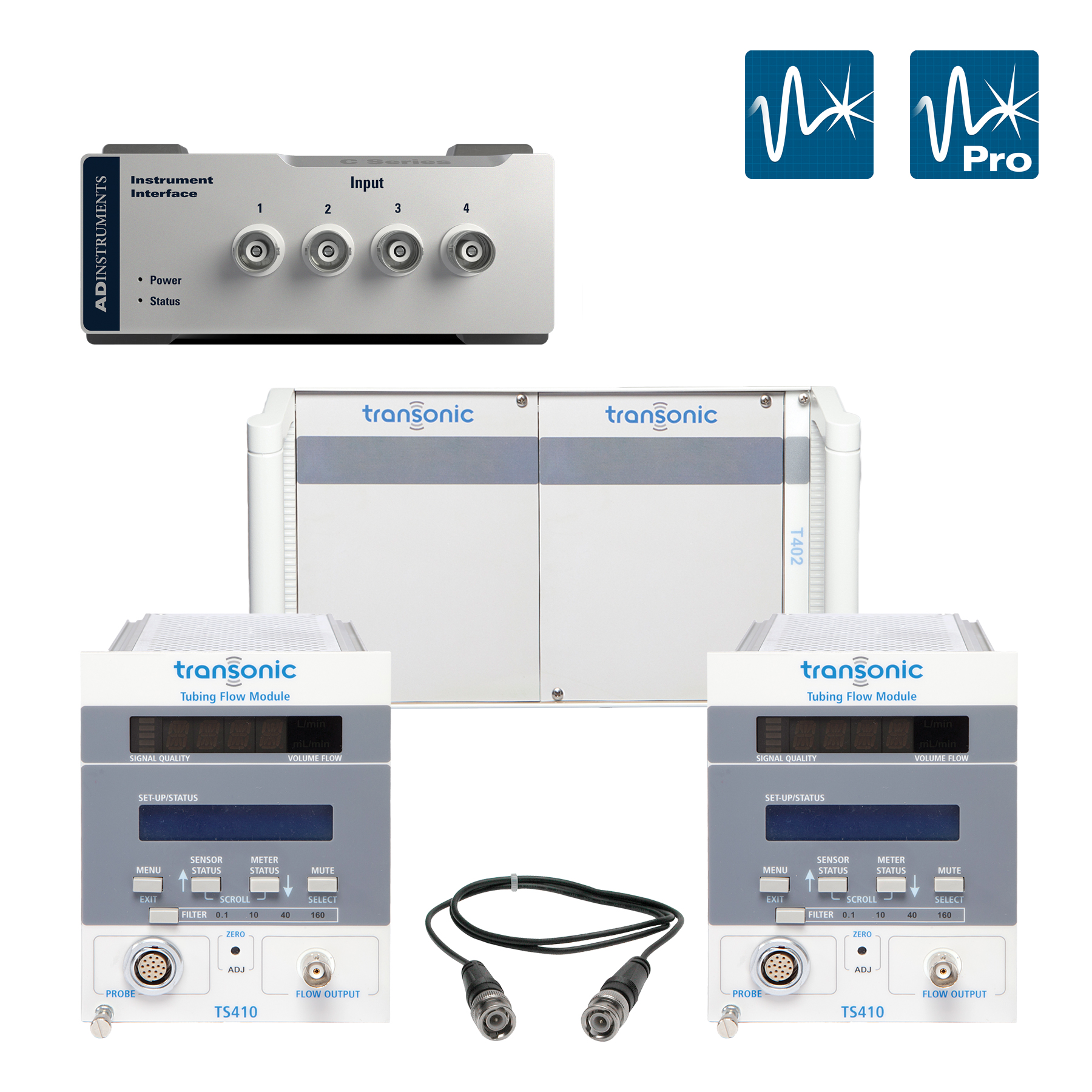

Two Channel Tubing Flow System
RSBTSI004
Measure tubing fluid flow from two separate laboratory tubes via suitable Flowsensors.

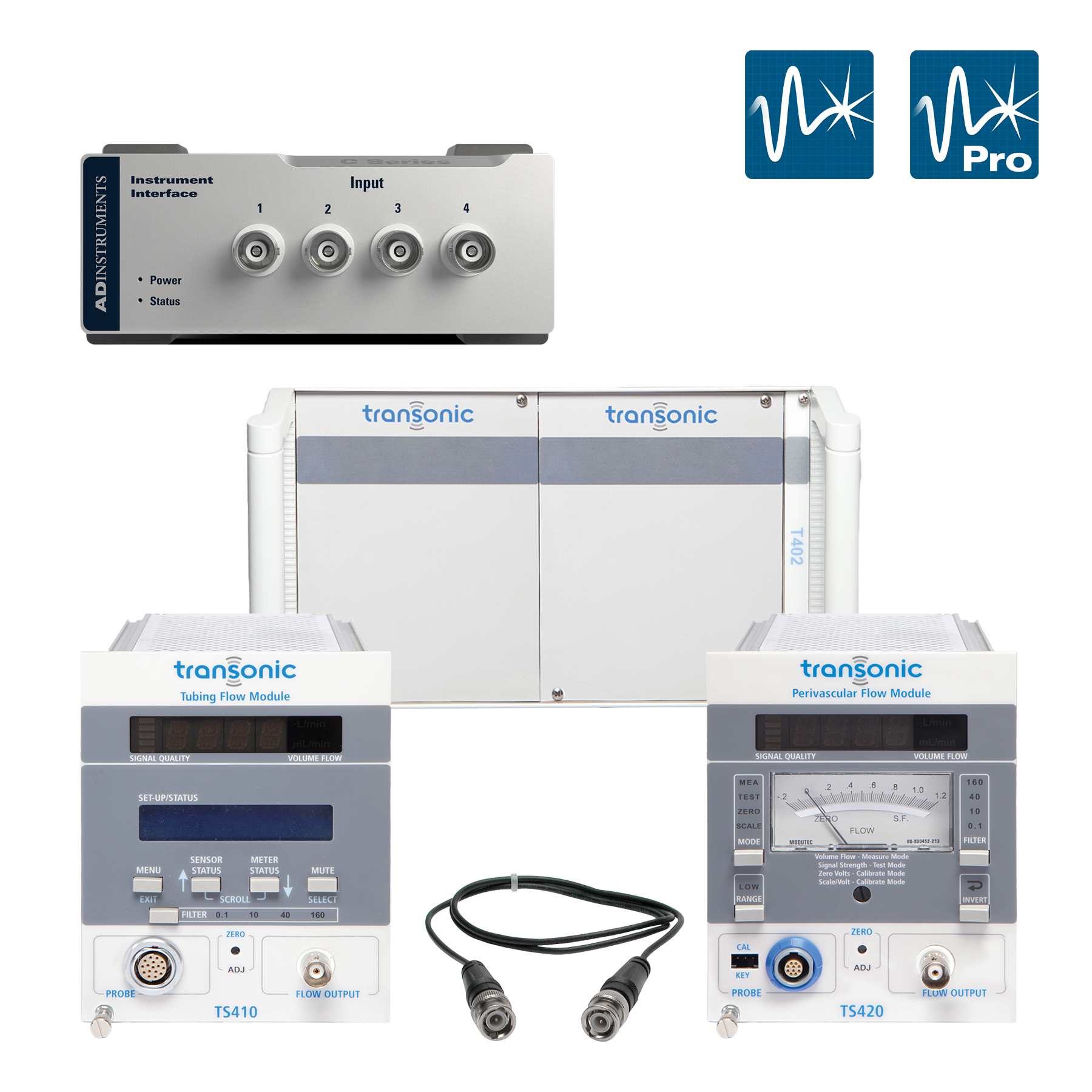

Two Channel Tubing/ Perivascular Flow System
RSBTSI005
Measure perivascular blood flow in a single blood vessel from a range of animal species via suitable Flowprobes as well as measuring tubing fluid flow from a single laboratory tube via suitable Flowsensors.
Perivascular and Tubing Flow Systems
Transonic Perivascular and Tubing Flow Systems
PRICE ON REQUEST
One or Two Channel Perivascular/Tubing Flow Systems can be used to measure perivascular blood flow in a single blood vessel from a range of animal species as well as measuring tubing fluid flow.
Overview
One or Two Channel Flow Systems are available to fit any combination and configuration of Perivascular Flowmeter or Tubing Flowmeter Modules, including leaving a channel blank for future addition of another Flowmeter Module.
System Components:
- C Series Instrument Interface
- LabChart Pro software
- One or Two Channel Perivascular/Tubing Flowmeter
- BNC to BNC Cable (1 m) (2)
Recommended:
- PowerLab C for integrating multiple devices
The Transonic Perivascular Flowmeter is used with a suitable Flowprobe, which is positioned around a single vessel, to measure blood flow. Flowprobes are available for acute or chronic studies, any vessel type, and for a range of animal species from mice through to pigs and sheep.
The Transonic Tubing Flowmeter can be used with Inline Flowprobes to measure fluid flow in laboratory tubing. These are pre-calibrated for tube type, perfusate solutions, temperature and flow rates. Flowprobes and Flowsensors are purchased separately; please discuss your needs with your ADInstruments representative.
Configurations
One Channel Perivascular Flow System copy permalink
https://www.adinstruments.com/products/perivascular-and-tubing-flow-systems#product-RSBTSI001
RSBTSI001
Measure perivascular blood flow from a single vessel type from a range of animal species via suitable Flowprobes placed external to the vessel.
One Channel Tubing Flow System copy permalink
https://www.adinstruments.com/products/perivascular-and-tubing-flow-systems#product-RSBTSI002
RSBTSI002
Measure tubing fluid flow from a single laboratory tube via suitable Flowsensors.
Two Channel Perivascular Flow System copy permalink
https://www.adinstruments.com/products/perivascular-and-tubing-flow-systems#product-RSBTSI003
RSBTSI003
Measure two perivascular blood flow measurements from a range of animal species via suitable Flowprobes placed external to the vessel.
Two Channel Tubing Flow System copy permalink
https://www.adinstruments.com/products/perivascular-and-tubing-flow-systems#product-RSBTSI004
RSBTSI004
Measure tubing fluid flow from two separate laboratory tubes via suitable Flowsensors.
Two Channel Tubing/ Perivascular Flow System copy permalink
https://www.adinstruments.com/products/perivascular-and-tubing-flow-systems#product-RSBTSI005
RSBTSI005
Measure perivascular blood flow in a single blood vessel from a range of animal species via suitable Flowprobes as well as measuring tubing fluid flow from a single laboratory tube via suitable Flowsensors.
One Channel Perivascular Flow System
RSBTSI001
One Channel Tubing Flow System
RSBTSI002
Two Channel Perivascular Flow System
RSBTSI003
Two Channel Tubing Flow System
RSBTSI004
Two Channel Tubing Flow System
RSBTSI004
Features
- Complete flow analysis and acquisition system
- Highly accurate volume flow measurement
- Ultrasound transit-time technology – the gold standard
- Analog outputs for direct connection to Instrument Interface
