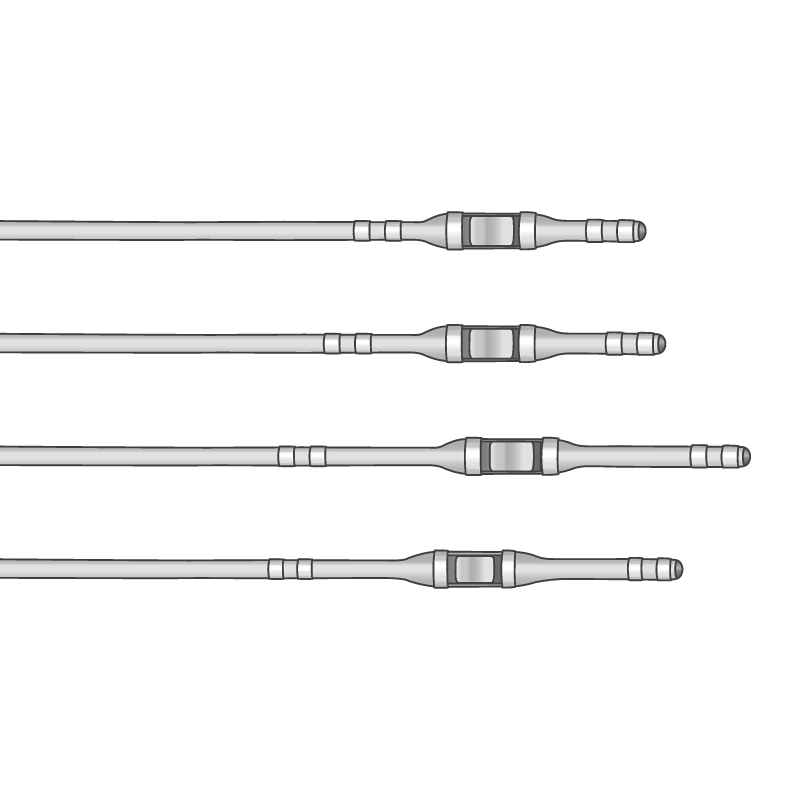

Mouse PV Catheters

SPR-848, SPR-864, SPR-839, SPR-853, SPR-866, PVR-1030, PVR-1035, PVR-1045

Configurations


Status message

Please select which product configuration you would like to add to your cart.
No image available
Mouse PV Catheter (1.4F, 4E, 4 mm, Taper)

SPR-853

$6,103.00 USD

This is an ultra-miniature PV Catheter (1.4F Polyimide Nylon) with a tapered end, suitable for use in mice.

checkmarkShips from USA
Estimated delivery time: 2-5 business days.


Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)

SPR-839

$5,440.00 USD

This is a repairable PV catheter with an effective length of 3.5 cm, suitable for use in mice. An economical, non-repairable model is also available.

hourglassShips from Overseas
Estimated delivery time: 1 month.


No image available
Mouse PV Catheter (1.4F, 6E, Selectable Seg, 4 mm/6 mm)

SPR-866

$6,103.00 USD

The SPR-866 is a Polyimide selectable segment (4mm/6mm spacing between the electrodes) pressure-volume catheter (1.4F) for use in mice. The pressure sensor is located between the 2nd and 3rd electrode. The catheter uses a low-profile connector for the pressure sensor and redel for the volume conductance. It is designed for use with the MPVS-300 and the MPVS-400 control units only via a PEC-4D for pressure and CEC-4B for volume, but is NOT compatible with the MPVS Ultra. The SPR-866 is reusable and can be repaired.

hourglassShips from Overseas
Estimated delivery time: 2 months.

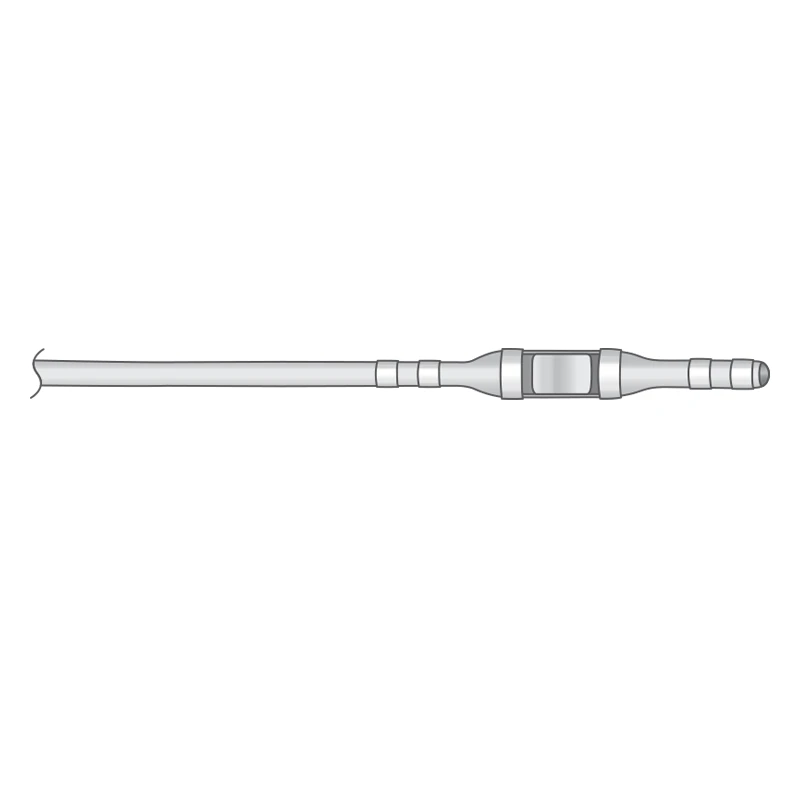

Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)

PVR-1030

$5,440.00 USD

This PV catheter's length (3.25 cm) and electrode spacing  (3.0 mm) are optimal for ventricular volume measurement in smaller mice, and for right ventricle measurements. Coupled with the smaller diameter (1F), this is the world’s smallest pressure-volume catheter!

For standard-sized animals, the the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.

hourglassShips from Overseas
Estimated delivery time: 2 months.


No image available
Mouse PV Catheter (1F, 4E, 3.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1035

$5,440.00 USD

This PV catheter's length (3.25 cm) and electrode spacing (3.5 mm) are optimized for ventricular volume measurement in smaller mice (< 25 g), and for right ventricle measurements. The smaller diameter (1F) of the catheter minimizes obstruction of blood flow in the vessel and allows improved surgical access to the right ventricle and pulmonary arteries.

For standard-sized animals, the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.

hourglassShips from Overseas
Estimated delivery time: 2 months.


No image available
Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1045

$5,440.00 USD

This PV catheter's length (3.25 cm) and electrode spacing (4.5 mm) are optimized for ventricular volume measurement in standard-sized mice (25 g or greater). The 1F diameter of the catheter material minimizes the obstruction of blood flow in the vessel and allows for improved surgical access, which enables the use of smaller, younger mice for earlier detection of disease or treatment.

hourglassShips from Overseas
Estimated delivery time: 2 months.


No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Apical)

SPR-848

PRICE ON REQUEST

This PV catheter is ideally suited for use in mice hearts using the open-chest, ventricular apical stab method. This catheter has two pressure sensors.


No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Carotid)

SPR-864

PRICE ON REQUEST

This PV catheter is ideally suited for use in mice hearts using the closed-chest, carotid method. The catheter has two pressure sensors.


×

Configurations


No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Apical)

SPR-848

This PV catheter is ideally suited for use in mice hearts using the open-chest, ventricular apical stab method. This catheter has two pressure sensors.


No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Carotid)

SPR-864

This PV catheter is ideally suited for use in mice hearts using the closed-chest, carotid method. The catheter has two pressure sensors.


No image available
Mouse PV Catheter (1.4F, 4E, 4 mm, Taper)

SPR-853

This is an ultra-miniature PV Catheter (1.4F Polyimide Nylon) with a tapered end, suitable for use in mice.


Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)

SPR-839

This is a repairable PV catheter with an effective length of 3.5 cm, suitable for use in mice. An economical, non-repairable model is also available.


No image available
Mouse PV Catheter (1.4F, 6E, Selectable Seg, 4 mm/6 mm)

SPR-866

The SPR-866 is a Polyimide selectable segment (4mm/6mm spacing between the electrodes) pressure-volume catheter (1.4F) for use in mice. The pressure sensor is located between the 2nd and 3rd electrode. The catheter uses a low-profile connector for the pressure sensor and redel for the volume conductance. It is designed for use with the MPVS-300 and the MPVS-400 control units only via a PEC-4D for pressure and CEC-4B for volume, but is NOT compatible with the MPVS Ultra. The SPR-866 is reusable and can be repaired.


Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)

PVR-1030

This PV catheter's length (3.25 cm) and electrode spacing  (3.0 mm) are optimal for ventricular volume measurement in smaller mice, and for right ventricle measurements. Coupled with the smaller diameter (1F), this is the world’s smallest pressure-volume catheter!

For standard-sized animals, the the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.


No image available
Mouse PV Catheter (1F, 4E, 3.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1035

This PV catheter's length (3.25 cm) and electrode spacing (3.5 mm) are optimized for ventricular volume measurement in smaller mice (< 25 g), and for right ventricle measurements. The smaller diameter (1F) of the catheter minimizes obstruction of blood flow in the vessel and allows improved surgical access to the right ventricle and pulmonary arteries.

For standard-sized animals, the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.


No image available
Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1045

This PV catheter's length (3.25 cm) and electrode spacing (4.5 mm) are optimized for ventricular volume measurement in standard-sized mice (25 g or greater). The 1F diameter of the catheter material minimizes the obstruction of blood flow in the vessel and allows for improved surgical access, which enables the use of smaller, younger mice for earlier detection of disease or treatment.


×

Mouse PV Catheters

$5,440.00 USD-$6,103.00 USD

Millar Pressure-Volume (PV) catheters have revolutionized cardiovascular research in small animals.

Book a Demo

Overview

Millar Pressure-Volume (PV) catheters have revolutionized cardiovascular research in small animals. These ultra-miniature catheters are capable of measuring left ventricular pressure and volume simultaneously and continuously from the intact, beating hearts of mice. Built to the highest quality standards, the catheters combine a proven Mikro-Tip® pressure sensor with four electrodes to collect real-time pressure-volume data, enabling minimally invasive, continuous, intracardiac PV analysis.

Each contains four platinum electrodes arranged in two pairs. The paired electrodes are separated by 0.5 mm, while the distance between the pair varies between catheters. The pressure sensor is located in the center, between the two pairs of electrodes.

They can be used with:

MPVS PV-Units require the  MPVS Ultra Cable Pack  (purchased separately).

Calibration: A Pressure Gauge kit that provides the necessary items to calibrate the pressure transducers is available. The PV Loop Add-On for LabChart  provides step-by-step Workflows to guide you through the calibration process.

Millar Mikro-Tip Catheters require a certain level of care to ensure accuracy and the anticipated lifespan of your catheters. Tergazyme (Alconox, Inc.) is required for cleaning and ensuring the removal of proteinaceous soils, tissue, blood and body fluids from the catheter. Please refer to Alconox, Inc.’s website to purchase from your local supplier. For a few best practice tips to help get you started with your catheters, see our guide here. Additionally, the purchase of an ESD Adjustable Wrist Strap w/ 10’ Coil Cord (Blue, 4mm Snap) is highly recommended to protect these catheters from electrostatic discharge (ESD) damage during handling.

Non-repairable discount options are available for the Mouse PV Catheter (SPR-839 only). Contact us to find out more and if this is the right option for you.

Configurations


No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Apical)

SPR-848

This PV catheter is ideally suited for use in mice hearts using the open-chest, ventricular apical stab method. This catheter has two pressure sensors.

No image available
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Carotid)

SPR-864

This PV catheter is ideally suited for use in mice hearts using the closed-chest, carotid method. The catheter has two pressure sensors.

No image available
Mouse PV Catheter (1.4F, 4E, 4 mm, Taper)

SPR-853

This is an ultra-miniature PV Catheter (1.4F Polyimide Nylon) with a tapered end, suitable for use in mice.

Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)

SPR-839

This is a repairable PV catheter with an effective length of 3.5 cm, suitable for use in mice. An economical, non-repairable model is also available.

No image available
Mouse PV Catheter (1.4F, 6E, Selectable Seg, 4 mm/6 mm)

SPR-866

The SPR-866 is a Polyimide selectable segment (4mm/6mm spacing between the electrodes) pressure-volume catheter (1.4F) for use in mice. The pressure sensor is located between the 2nd and 3rd electrode. The catheter uses a low-profile connector for the pressure sensor and redel for the volume conductance. It is designed for use with the MPVS-300 and the MPVS-400 control units only via a PEC-4D for pressure and CEC-4B for volume, but is NOT compatible with the MPVS Ultra. The SPR-866 is reusable and can be repaired.

Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)

PVR-1030

This PV catheter's length (3.25 cm) and electrode spacing  (3.0 mm) are optimal for ventricular volume measurement in smaller mice, and for right ventricle measurements. Coupled with the smaller diameter (1F), this is the world’s smallest pressure-volume catheter!

For standard-sized animals, the the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.

No image available
Mouse PV Catheter (1F, 4E, 3.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1035

This PV catheter's length (3.25 cm) and electrode spacing (3.5 mm) are optimized for ventricular volume measurement in smaller mice (< 25 g), and for right ventricle measurements. The smaller diameter (1F) of the catheter minimizes obstruction of blood flow in the vessel and allows improved surgical access to the right ventricle and pulmonary arteries.

For standard-sized animals, the Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable) is recommended.

No image available
Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1045

This PV catheter's length (3.25 cm) and electrode spacing (4.5 mm) are optimized for ventricular volume measurement in standard-sized mice (25 g or greater). The 1F diameter of the catheter material minimizes the obstruction of blood flow in the vessel and allows for improved surgical access, which enables the use of smaller, younger mice for earlier detection of disease or treatment.

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Apical)

SPR-848

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Carotid)

SPR-864

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1.4F, 4E, 4 mm, Taper)

SPR-853

×
checkmark Item successfully added to your quote request.
Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)

Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)

SPR-839

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1.4F, 6E, Selectable Seg, 4 mm/6 mm)

SPR-866

×
checkmark Item successfully added to your quote request.
Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)

Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)

PVR-1030

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1F, 4E, 3.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1035

×
checkmark Item successfully added to your quote request.
No image available

Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable)

PVR-1045

Features

  • Ultra-miniature 1-1.4 F catheters, each housing a pressure sensor.
  • Pressure and volume measurement from a single instrument.
  • Flexible, durable catheter material (Polyimide Nylon).
  • No motion artifact or damping of pressure signal.
  • Pressure measurement at the source.
  • High frequency response.

Applications: These catheters combine pressure sensors and electrodes for simultaneous, high-fidelity pressure and volume measurements, enabling minimally invasive, continuous, intracardiac PV analysis.

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Technical

Mouse Pressure-Volume Catheters
Model number Length (cm) Tip (French) No. sensors Electrode spacing Use-life Repairable
PVR-1030 3.25 1 1 3 mm Reusable - Non-Sterile no
PVR-1035 3.25 1 1 3.5 mm Reusable - Non-Sterile no
PVR-1045 3.25 1 1 4.5 mm Reusable - Non-Sterile no
SPR-839 3.25 1.4 1 4.5 mm Reusable - Non-Sterile yes
SPR-848   1.4 2 4.5 mm Reusable - Non-Sterile
SPR-853   1.4 1 4.0 mm Reusable - Non-Sterile
SPR-864 3.5 1.4 2 4.5 mm Reusable - Non-Sterile yes
SPR-866 *MPVS400 Only   1.4 2 4 mm/ 6 mm Reusable - Non-Sterile



Product Codes


SPR-848
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Apical)
SPR-864
Mouse PV Catheter (1.4F, 2P, 4E, 4.5 mm, Carotid)
SPR-853
Mouse PV Catheter (1.4F, 4E, 4 mm, Taper)
SPR-839
Mouse PV Catheter (1.4F, 4E, 4.5 mm, 3.5 cm, PI)
SPR-866
Mouse PV Catheter (1.4F, 6E, Selectable Seg, 4 mm/6 mm)
PVR-1030
Mouse PV Catheter (1F, 4E, 3.0 mm, 4.5 cm, PI, Non Repairable)
PVR-1035
Mouse PV Catheter (1F, 4E, 3.5 mm, 4.5 cm, PI, Non Repairable)
PVR-1045
Mouse PV Catheter (1F, 4E, 4.5 mm, 4.5 cm, PI, Non Repairable)
