Rat PV Catheters
Millar Mikro-Tip® rat PV catheters
These ultra-miniature Polyimide Nylon catheters can measure both ventricular pressure and volume simultaneously and continuously from the intact beating hearts of rats.
Overview
Millar offers the world's only solid-state Pressure-Volume (PV) catheters for cardiovascular research in rats.
These ultra-miniature catheters combine both pressure sensors and electrodes for simultaneous measurement of left or right ventricular pressure and volume measurements continuously from the intact, beating hearts of rats.
Built to the highest quality standards, Millar PV catheters provide end-diastolic, and end-systolic volumes, allowing researchers to calculate stroke volume, ejection fraction, cardiac output, stroke work, Tau, dP/dt Max and Min, contraction time, and relaxation time.
Each catheter combines a proven Mikro-Tip MEMs pressure sensor with four electrodes to collect real-time pressure-volume data, enabling minimally invasive, continuous, intracardiac PV analysis.
There are two versions of each catheter size available:
- Those compatible with the Millar MPVS Duo Pressure-Volume System*
- Those compatible with the traditional MPVS Ultra Pressure-Volume Systems (these systems are no longer sold, but supporting catheters are still available).
*These catheters are also compatible with ADV550 / ADV500 units previously sold by Transonic Scisense.
Non-repairable discount options are available for Rat PV Catheters. Contact us to find out more and if this is the right option for you.
Required Products:
- MPVS Duo Foundation System, or
- MPVS Duo + PowerLab and LabChart (or other DAQ of choice)
Recommended:
- Volume Calibration Cuvettes to convert volume units into mL for mice and rats may be purchased separately, if required but not included in your Configuration (see below).
Product Configurations

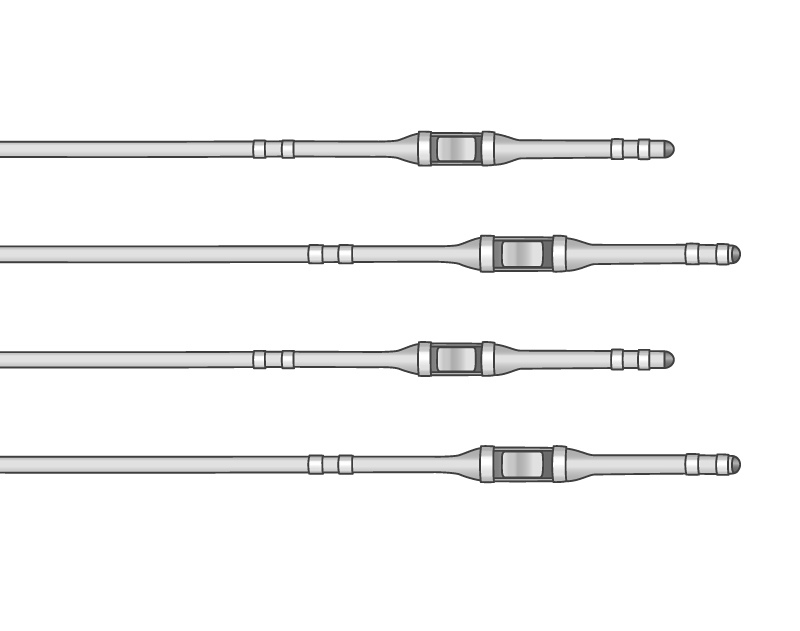

Rat PV Catheter (2F, 4E, 6mm, 15cm, PI, Ultra)
2 F, with an effective length of 12.5 cm. 4 platinum electrodes are separated by 0.5 mm with the distance between each pair of 6.0 mm. Pressure sensor centered between pairs of electrodes.
Compatible with Millar MPVS Ultra Units.
Rat PV Catheter (2F, 4E, 9mm, 12.5cm, PI, Ultra)
2 F, with an effective length of 12.5 cm. 4 platinum electrodes are separated by 0.5 mm with the distance between each pair of 9.0 mm. Pressure sensor centered between pairs of electrodes.
Compatible with Millar MPVS Ultra Units.
Rat PV Catheter (2F, 4E, 6mm, 15cm, PI, Duo)
2 F, with an effective length of 12.5 cm. 4 platinum electrodes are separated by 0.5 mm with the distance between each pair of 6.0 mm. Pressure sensor centered between pairs of electrodes.
Compatible with Millar MPVS Duo Units and ADV500/550 units previously sold by Transonic Scisense.
Rat PV Catheter (2F, 4E, 9mm, 12.5cm, PI, Duo)
2 F, with an effective length of 12.5 cm. 4 platinum electrodes are separated by 0.5 mm with the distance between each pair of 9.0 mm. Pressure sensor centered between pairs of electrodes.
Compatible with Millar MPVS Duo Units and ADV500/550 units previously sold by Transonic Scisense.
Related
Products
Research Applications
Cardiovascular Hemodynamics
Working Heart
Cardiovascular Isolated Heart Systems
In Vitro Pharmacology + Isolated Tissue and Organs
Key Features
- Ultra-miniature pressure sensors
- Platinum electrodes
- Pressure and volume measurement from a single instrument
- Flexible, durable, small-diameter catheter material
- High frequency response
- Pressure measurement at the source
- No motion artifact or damping of pressure signal
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
Best Practice Care:
Millar Mikro-Tip Catheters require a certain level of care to ensure accuracy and the anticipated lifespan of your catheters.
- Tergazyme (Alconox, Inc.) is required for cleaning and ensuring the removal of proteinaceous soils, tissue, blood and body fluids from the catheter. Please refer to Alconox, Inc.’s website to purchase from your local supplier.
- For MPVS Ultra Compatible Catheters - purchase of an ESD Adjustable Wrist Strap w/ 10’ Coil Cord (Blue, 4mm Snap) is highly recommended to protect these catheters from electrostatic discharge (ESD) damage during handling. These straps are not required for MPVS Duo compatible catheters.
- For a few best practice tips to help get you started with your catheters, see our guide here.
Calibration:
- MPVS Duo compatible catheters: The MPVS Duo provides step-by-step workflows to guide you through the calibration process.
- MPVS Ultra compatible catheters: The PV Loop Add-On for LabChart provides step-by-step Workflows to guide you through the calibration process.
| Product Code | Material | Subject | Length | Tip (French) | Number of Sensors | Electrode Spacing | Number of Electrodes | Tip | Pigtail | Pressure Connector | Use Life | Repairable | Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPR-838 | Polyimide | Rat | 15 cm | 2 F | 1 | 9 mm | 4 | Straight | No | Low Profile | Reusable - Non-Sterile | Yes | MPVS Ultra |
| SPR-838A | Polyimide | Rat | 15 cm | 2 F | 1 | 9 mm | 4 | Straight | No | Low Profile | Reusable - Non-Sterile | Yes | MPVS Duo ADV500 ADV550 |
| SPR-869 | Polyimide | Rat | 15 cm | 2 F | 1 | 6 mm | 4 | Straight | No | Low Profile | Reusable - Non-Sterile | Yes | MPVS Ultra |
| SPR-869A | Polyimide | Rat | 15 cm | 2 F | 1 | 6 mm | 4 | Straight | No | Low Profile | Reusable - Non-Sterile | Yes | MPVS Duo ADV500 ADV550 |
