Neuro Amp EX
Neural Amplifier | Microneurography | Measuring Nerve Activity
The Neuro Amp EX is a front-end device that extends the capabilities of our PowerLab data acquisition system options to record nerve activity using the microneurographic technique.
As a low noise and high gain device, it is ideal for all recording environments requiring a wide bandwidth (100 Hz to 5 kHz) and a high signal to noise ratio.
Overview
The Neuro Amp EX is a low noise and high gain neural amplifier device which makes it suitable for all recording environments requiring a wide bandwidth (100 Hz to 5 kHz) and a high signal to noise ratio.
As a front-end device, the Neuro Amp gives researchers the ability to measure nerve activity using the microneurographic technique, when using a C Series Front End Interface or traditional PowerLab data acquisition device.
The Neuro Amp EX is fully isolated and suitable for both human and animal use.
The Neuro Amp EX provides:
- Full electrical isolation from power-line (mains) circuitry to guarantee subject safety
- A low-noise, high-gain differential amplifier specifically designed for measuring nerve activity (nerve traffic)
- Software-controlled low-pass, high-pass, and mains filters to remove unwanted signal frequencies
- Audio output to listen to neurological signals
Supplied with the Neuro Amplifier EX:

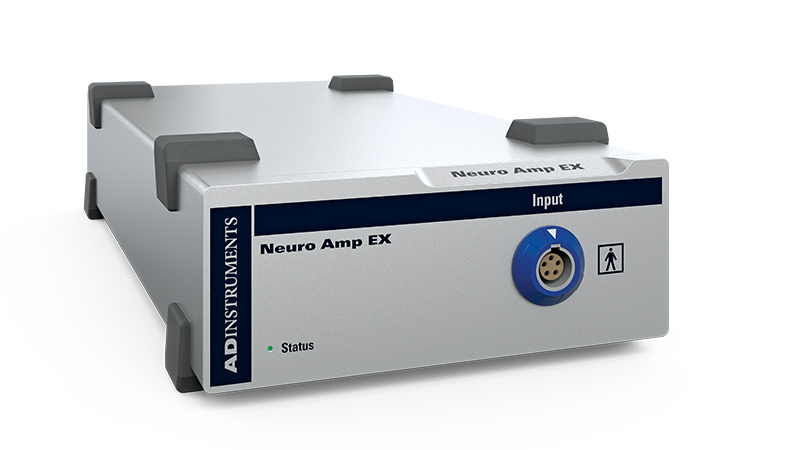

- The Neuro Amp EX headstage
- Six male Amphenol connectors for customization of microelectrode adapters for use with the Neuro Amp EX Headstage
(Note: microelectrodes are not supplied).
About the Neuro Amp EX:
The Neuro Amp EX [FE285] is designed to allow our PowerLab data acquisition systems to perform isolated measurements of single-unit or multi-unit extracellular action potentials from single neurons or axons, from human or animal subjects. It consists of an electrically isolated differential input AC amplifier with an isolated ground connection. It is possible to ‘daisy-chain’ multiple Neuro Amp EXs to record from separate subjects, using separate grounds.
*Please note that the Neuro Amp EX is not suitable for intracellular recording with glass microelectrodes.
Related
Products
Research Applications
Key Features
- Full electrical isolation from power-line (mains) circuitry to guarantee subject safety
- A low-noise, high-gain differential amplifier specifically designed for neurophysiological extracellular signal measurements
- Software-controlled low-pass, high-pass, and mains filters to remove unwanted signal frequencies for particular uses
- Audio output to listen to neurological signals
The Neuro Amp EX headstage provides a gain of 100 x with a 10 Hz High Pass filter. The cable shielding is directly connected to the casing, limiting the need for additional shielding at the input terminals.
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
Neuro Amp EX
Input
- Connection type: Five-pin Redel connector
- Input configuration: One isolated differential channel with isolated ground reference
- Input impedance: 100 MΩ
- Safety: Approved to IEC 60601-1 Standard (BF rating)
- Isolation: 4000 Vrms (50 Hz for 1 minute)
- Input ranges: ±20 μV to ±1 mV full scale in 6 steps (combined PowerLab, Neuro Amp EX front-end, and headstage)
Filtering
- Low-pass filtering: Software-selectable: 1 kHz, 2 kHz, 5 kHz
- High-pass filtering: First order filter. Software-selectable: 100 Hz, 300 Hz.
Output
- Signal: ±4.5 V maximum
- Audio output: Stereo jack with mono output; ±200 mV full scale, current limited to ±5 mA. Suitable for headphones or powered speakers.
Control Port
- I2C port: Provides control and power.
Physical Configuration
- Dimensions (h × w × d): 55 mm × 120 mm × 260 mm (2.2" × 4.7" × 10.2")
- Weight: 1.3 kg (2 lb 13 oz)
- Power requirements: ~2 W
- Operating conditions: 5-35 °C, 0-90% humidity (non-condensing)
- Transport / Storage conditions: 0-40 °C, 0-95% humidity (non-condensing)
Safety / Regulatory Information
- Safety: Complies with IEC 60601-1:2012
- EMC: Complies with IEC 60601-1-2:2014
- Equipment: Use only with an ADInstruments 35 series PowerLab. The PowerLab must be connected to safety earth via the power supply cable to ensure electrical safety.
Product Code
Compatibility
FE285
| Operating System | Recommended Hardware | Alternate Hardware | |
|---|---|---|---|
| LabChart Lightning | Windows / Mac | PowerLab C + Front End Interface | Traditional PowerLab |
| LabChart 8 | Windows / Mac | PowerLab C + Front End Interface | Traditional PowerLab |
