Radnoti Langendorff Constant Perfusion Flow Apparatuses

Radnoti Langendorff Constant Perfusion Flow Apparatuses

Designed to maintain cardiac function of isolated heart preparations in constant perfusion flow Langendorff mode, and are available in recirculating and non-recirculating configurations. Several sizes are also available to accommodate different heart sizes including mouse, rat, guinea pig, rabbit or cat.

Overview

These Radnoti Langendorff apparatuses are designed to maintain cardiac function of isolated heart preparations in constant perfusion flow mode, and are available in recirculating and non-recirculating configurations. Perfusing in constant flow allows changes in heart resistances and activity to be monitored as pressure variations and makes it easier for studies that titrate drugs into the heart using a syringe pump. However, it is important to note that the heart will not be able to auto regulate coronary flow, so production of ischemia or increases in work may result in a more severe insult than with a constant perfusion pressure circuit.

Several sizes are also available to accommodate different heart sizes including mouse, rat, guinea pig, rabbit or cat. Features of each design includes providing:

  • high quality crystal clear borosilicate glassware that is fully autoclavable, including
    • Radnoti 2.0 L Water Jacketed Reservoir
    • Compliance Bubble Trap (5 ml)
    • Radnoti Hi-Tech Heart Chamber
  • an appropriate aortic cannula assembly
  • a sturdy lab stand assembly and all associated clamp hardware
  • a complete water jacketed perfusion circuit and all necessary tubing pre-assembled
  • a Radnoti Tubing Adapter Kit for connector replacements or minor tubing customizations
  • Radnoti Thermal Bath/Circulator
  • Peristaltic Pump Drive with compatible Easy Load Pump Head


The modular design of these apparatuses and quick-disconnect tubings (allow quick and easy tubing assembly/disassembly) provide easy customization, modifications and additions that tailor to current or future needs. Each apparatus can be instrumented with compatible measurement tools (purchased separately) including PowerLab data acqusition system options, LabChart analysis software, amplifiers, volume flowmeters, force and pressure transducers, biopotential electrodes and stimulators. Additionally, some of these apparatuses are also supplied as part of a Langendorff Constant Flow Foundation System. Other apparatus variations are also available such the Radnoti Langendorff Constant Perfusion Pressure Apparatuses. Please consult your ADInstruments representative for more information.

Product Configurations

Radnoti Mouse Langendorff Constant Flow Apparatus (R)

Product Code
130106EZ-V

A Langendorff apparatus designed to maintain an isolated mouse heart in constant perfusion flow mode and to provide effluent recirculation functionality. Please specify the Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.


Radnoti Mouse Langendorff Constant Flow Apparatus (NR)

Product Code
130103EZ-V

A Langendorff apparatus designed to maintain an isolated mouse heart in a single pass constant perfusion flow mode. Please specify the Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.

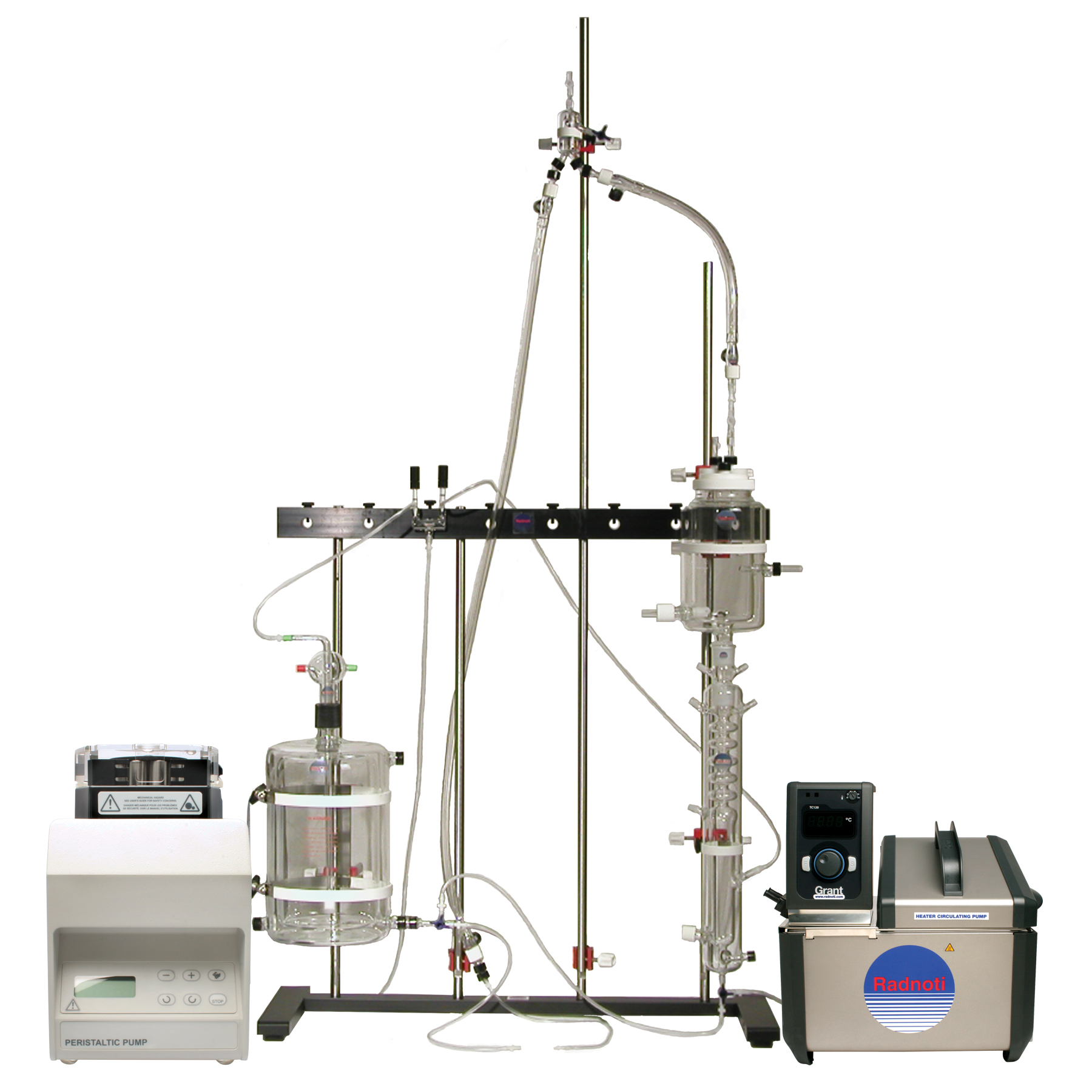

Radnoti Rat Langendorff Constant Flow Apparatus (R)

Product Code
120106EZ/S-V

A Langendorff apparatus designed to maintain an isolated rat heart in constant perfusion flow mode and to provide effluent recirculation functionality. Please specify the Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.


Radnoti Rat Langendorff Constant Flow Apparatus (NR)

Product Code
120103EZ/S-V

A Langendorff apparatus designed to maintain an isolated rat heart in a single pass constant perfusion flow mode. Please specify the Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.


Related

Research Applications

Langendorff
Cardiovascular Isolated Heart Systems
In Vitro Pharmacology + Isolated Tissue and Organs
Isolated Organ
In Vitro Pharmacology + Isolated Tissue and Organs

Key Features

  • Complete water-jacketed perfusion circuit that prevents heat loss and maintains uniform temperature.
  • Crystal clear borosilicate glassware that is autoclavable.
  • Modular design that:
    • fully supports current and future modifications, customizations, additions.
    • allows easy maintenance and cleaning.
  • High quality Tygon perfusion tubing that prevents degassing of the perfusate during low-flow experiments.
  • A water-jacketed reservoir maintains and gasses the perfusion solution or buffer.
  • A water-jacketed bubble trap to remove air bubbles from the flow.
  • A bench-top, general purpose, Thermal Bath/Circulator that allows temperature control in the range from ambient temperature to 120°C with a stability level of ± 0.05°C.

Support

Support Articles

Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

Training and Workshops

Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.

See Training & Workshops

Details and Tech Specs

Technical

Ordering Information:

When ordering a Radnoti Langendorff Apparatus, please specify the following:
Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.
Size (X) = S for Rat and Guinea Pig or M for Cat and Rabbit.

Product Codes

130106EZ-V
Radnoti Mouse Langendorff Constant Flow Apparatus (R)
130103EZ-V
Radnoti Mouse Langendorff Constant Flow Apparatus (NR)
120106EZ/S-V
Radnoti Rat Langendorff Constant Flow Apparatus (R)
120103EZ/S-V
Radnoti Rat Langendorff Constant Flow Apparatus (NR)
×
