Radnoti Masterflex Peristaltic Pumps
The Masterflex® peristaltic pumps are specifically selected for their dependable and precise performance. Their design centers around a pump drive, the corresponding pump head and tubing.
Frequently purchased with Radnoti Masterflex Peristaltic Pumps
Overview
The Masterflex® peristaltic pumps are specifically selected to work with Radnoti’s perfusion apparatuses, because of their dependable and precise performance. Their design centers around a pump drive, the corresponding pump head and tubing.
Two pump drives models are available for flow rates less than 1 L/min (depending on tubing used), which are associated with the rpm ranges of 1-100 rpm and 20-600 rpm. Both are powered by a 1/10 hp (75 W) reversible permanent magnet motor. The rotational speed & direction can be manually or digitally controlled, and shown on a 3-digit LED display. For heart perfusion studies, the 1 to 100 rpm pump drive is suitable for mouse hearts, while 20 to 600 rpm pump drive is suitable for rats and small animal hearts.
The Radnoti Pump Head (6 Roller) is compatible with both pump drives, and is capable of handling up to a maximum flow rate of 900 ml/min (tubing and pump drive dependent). Up to two pump heads can be attached to a pump drive. The pump head uses the Easy-Load® design for easy tubing mounting, release and removal.
Additionally, another pump drive is available for applications requiring a high flow and pressure setting. It is powered by 1/3 hp (0.25 kW) motor, which provides 33 to 650 rpm. Together with its corresponding pump head, it can achieve flow rates close to 19 L/min (depending on tubing used), which is ideal for perfusing porcine hearts.
Product Configurations

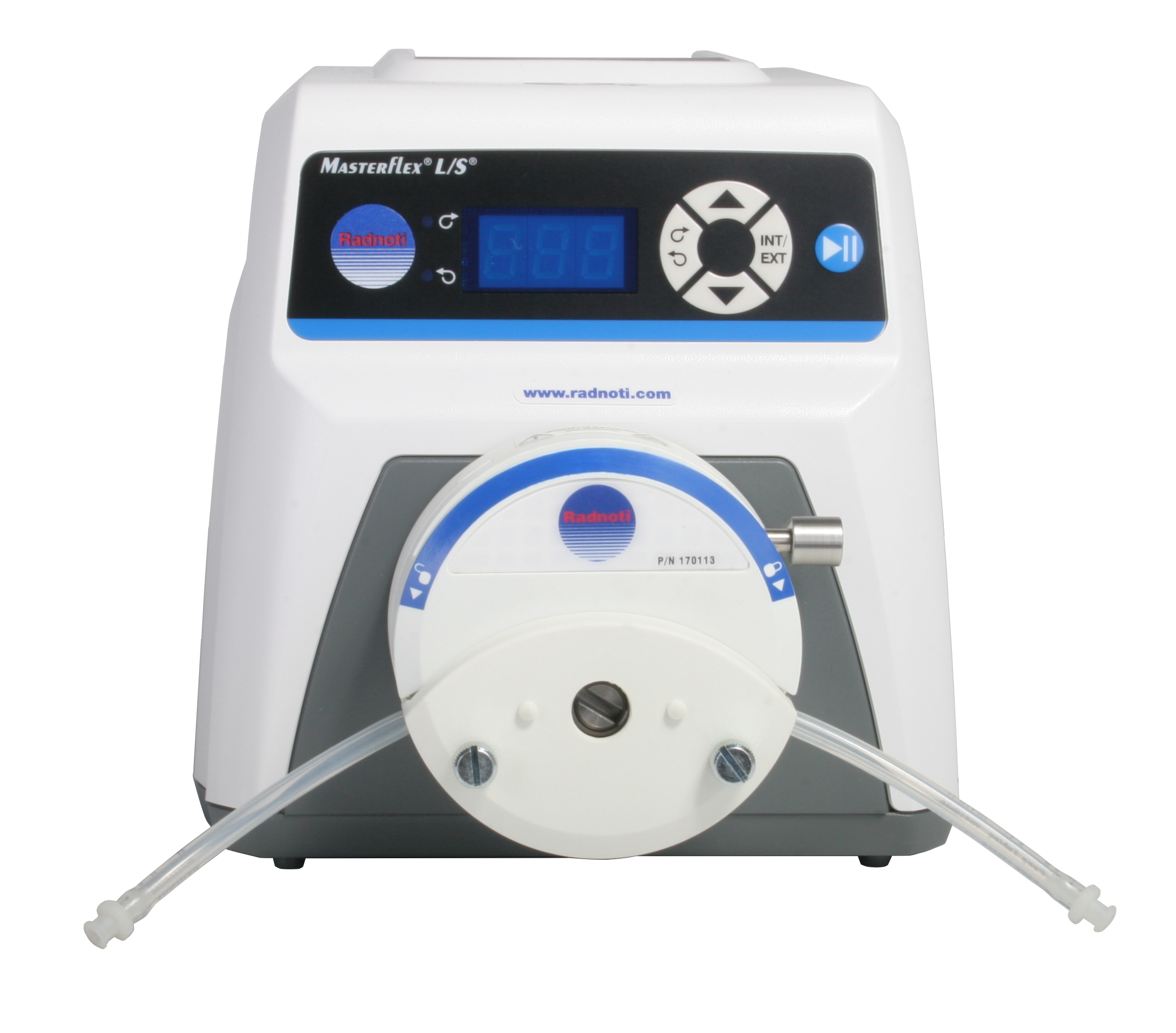

Radnoti Masterflex Peristaltic Pump (1-100 rpm, Single Head)
An assembled Masterflex Peristaltic Pump that consists of a 170113 Radnoti Pump Head (6 Roller), which is attached to a 170100 Peristaltic Pump Drive (1-100 rpm, Dual Voltage). It provides peristaltic pumping for a single perfusion line via its tubing assembly (supplied) and is suitable for perfusing mouse hearts. Any additional required pump head tubing is purchased separately.

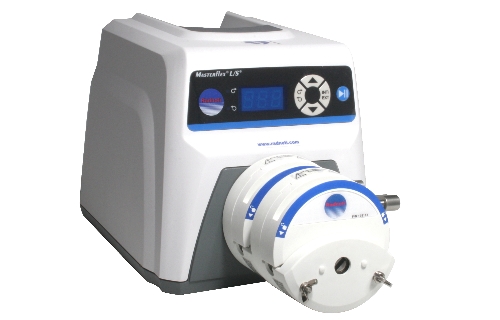

Radnoti Masterflex Peristaltic Pump (1-100 rpm, Dual Head)
An assembled Masterflex Peristaltic Pump that consists of two 170113 Radnoti Pump Heads (6 Roller), which are attached to a 170100 Peristaltic Pump Drive (1-100 rpm, Dual Voltage). It provides peristaltic pumping for two separate perfusion lines via its pump head tubing assemblies (supplied) and is suitable for perfusing mouse hearts. Any additional required tubing is purchased separately.
Radnoti Masterflex Peristaltic Pump (20-600 rpm, Single Head)
An assembled Masterflex Peristaltic Pump that consists of a 170113 Radnoti Pump Head (6 Roller), which is attached to a 170600 Peristaltic Pump Drive (20-600 rpm, Dual Voltage). It provides peristaltic pumping for a single perfusion line via its pump head tubing assembly (supplied) and is suitable for perfusing rat hearts. Any additional required tubing is purchased separately.
Radnoti Masterflex Peristaltic Pump (20-600 rpm, Dual Head)
An assembled Masterflex Peristaltic Pump that consists of two 170113 Radnoti Pump Heads (6 Roller), which are attached to a 170600 Peristaltic Pump Drive (20-600 rpm, Dual Voltage). It provides peristaltic pumping for two separate perfusion lines via its pump head tubing assemblies (supplied) and is suitable for perfusing rat hearts. Any additional required tubing is purchased separately.

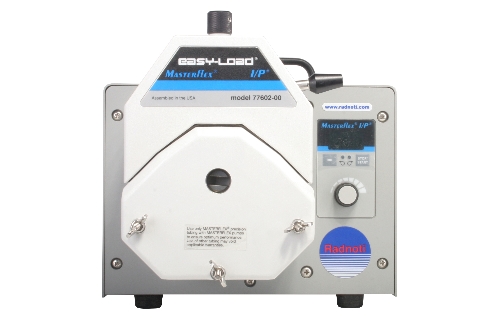

Radnoti Masterflex Peristaltic Pump (33 to 650 rpm, Single Head)
An assembled Masterflex Peristaltic Pump that consists of a 170111-HF Easy Load Pump Head (High Flow), which is attached to a 170101-V Peristaltic Pump Drive (High Flow). It provides peristaltic pumping for a single perfusion line via its pump head tubing assembly (supplied) and is suitable for perfusing porcine hearts. Any additional required tubing is purchased separately.

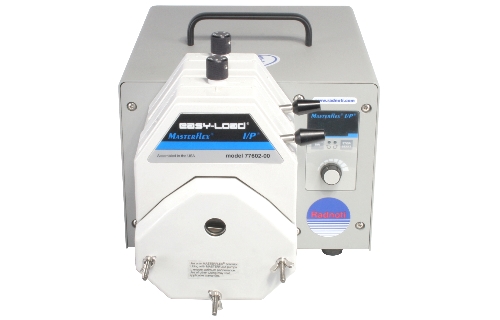

Radnoti Masterflex Peristaltic Pump (33 to 650 rpm, Dual Head)
An assembled Masterflex Peristaltic Pump that consists of two 170111-HF Easy Load Pump Heads (High Flow), which are attached to a 170101-V Peristaltic Pump Drive (High Flow). It provides peristaltic pumping for two separate perfusion lines via its pump head tubing assemblies (supplied) and is suitable for perfusing porcine hearts. Any additional required tubing is purchased separately.
Related
Products
Research Applications
Cardiovascular Isolated Heart Systems
In Vitro Pharmacology + Isolated Tissue and Organs
Working Heart
Cardiovascular Isolated Heart Systems
In Vitro Pharmacology + Isolated Tissue and Organs
Isolated Organ
In Vitro Pharmacology + Isolated Tissue and Organs
Tubing Flow
In Vitro Pharmacology + Isolated Tissue and Organs
Support
Support Articles
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
Training and Workshops
Maximize time and resources with our customized training services delivered at your facility, on your equipment, on your terms.
Details and Tech Specs
Technical
Ordering Information
When ordering a Radnoti Masterflex Peristaltic Pump, please specify the following:
Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V.
Pump Drive Specifications
| Pump Drive | Maximum rpm | Maximum Flow Rate (tubing and pump head dependent) | Power | Material | Dimensions |
1-100 rpm | 100 | 580 mL/min | 90 - 260 VAC; 50/60 Hz | ABS plastic and aluminium | 10"L x 8.5"W x 8.5"H |
20-600 rpm | 600 | 3400 mL/min | 90 - 260 VAC; 50/60 Hz | ABS plastic and aluminium | 10"L x 8.5"W x 8.5"H |
33 to 650 rpm | 650 | 26000 mL/min | 90 - 260 VAC; 50/60 Hz | Painted steel and aluminium | 14"L x 10"W x 9"H (35.6 x 25.4 x 22.9 cm) |
Pump Head Specifications
| Pump Head | Volume per revolution | Flow Rates |
| L/S® (6 Roller) | 0.06 mL (L/S 13) | with 1-100 rpm Pump Drive: - 0.06 mL/m @ 20 rpm min and 6 mL/m @ 100 rpm max (L/S 13) - 0.80 mL/m @ 20 rpm min and 80 mL/m @ 100 rpm max (L/S 16) with 20-600 rpm Pump Drive: - 0.06 mL/m @ 20 rpm min and 36 mL/m @ 600 rpm max (L/S 13) - 0.80 mL/m @ 20 rpm min and 380 mL/m @ 600 rpm max (L/S 16) |
| I/P® (3 Roller) - High Flow | 12.3 mL (I/P 73) | with 33 to 650 rpm Pump Drive: - 0.24 L/m @ 20 rpm min and 8 mL @ 600 rpm max (I/P 70) - 0.40 L/m @ 20 rpm min and 13 mL/m @ 600 rpm max (I/P 88) - 0.52 L/m @ 20 rpm min and 17 mL/m @ 600 rpm max (I/P 89) |
